4-Port, 3-Position Manual Valve
Manual Directional Control Valves
Control Valves: 4-Port, 3-Position
- These valves can be used to control a double acting workholding system. (May also be used to control single acting systems).
- Rotary handle motion uses a rotary bearing.
- Heat treated rotor and poppets are spring and pressure loaded against each other to provide positive fluid control for hundreds of thousands of cycles.
- All valves ship with short and long handles.
- Handle orientation can be adjusted in 45° increments.
- Standard length mounting bolts provided. (#10-24).

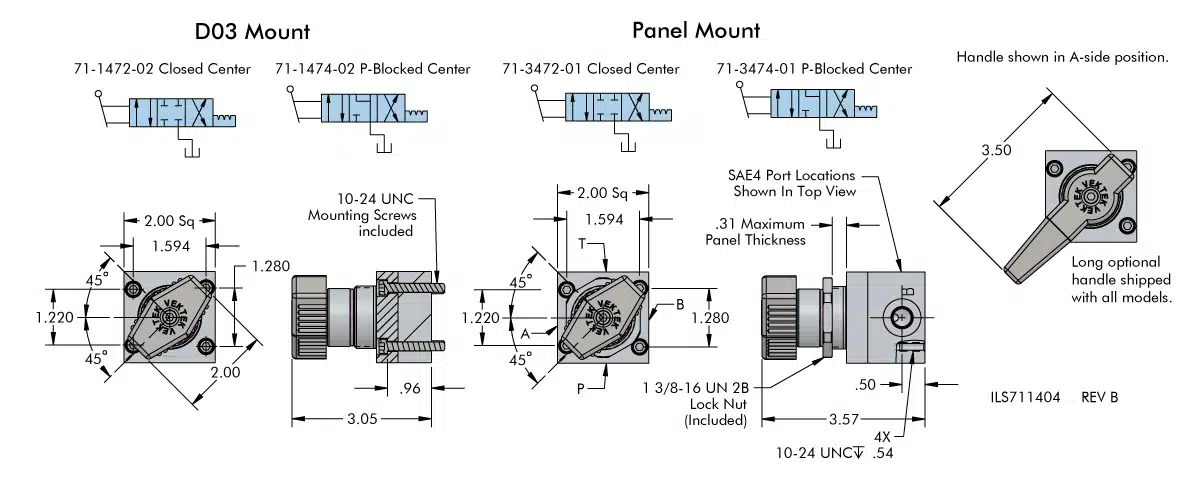

| Model No. | Mounting Style | Valve Type | Fluid Flow Maximum | Tank Port Pressure |
|---|---|---|---|---|
| 71-1472-02 | D03 Mount | Closed Center | 1.5 gpm | 250 psi max |
| 71-1474-02 | D03 Mount | P-Blocked Center | 1.5 gpm | 250 psi max |
| 71-3472-01 | Panel Mount | Closed Center | 1.5 gpm | 250 psi max |
| 71-3474-01 | Panel Mount | P-Blocked Center | 1.5 gpm | 250 psi max |
