In The Port Flow Control
Low Pressure Accessory Valves
In The Port Precision Flow Control
- Flow control requires the use of manifold mount ports.
- Meter-in speed control with reverse free flow check valve.
- Smallest flow control valve on the market.
- Prevent component cam damage from unexpected or accidental surges in flow rate.
- Adjusting screw is positively retained and will not come out under pressure.

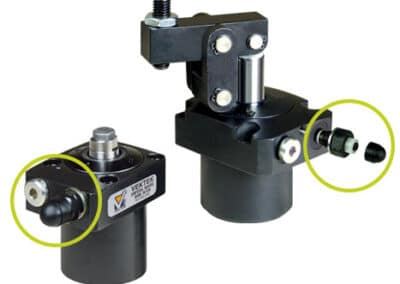

- Use in the clamps port of single and double acting Swing Clamps or Link Clamps and in double acting Work Supports.
Consult the work support, the swing clamp or link clamp specifications page for the valve that is appropriate for your application. Flow control requires the use of manifold mounting.
NOTE: Max flow rate not to exceed the individual device rating or 3.8 l/min whichever is lower. Cavity works for both Sequence Valves and Flow Control Valves.
| Model No. | Port Type |
|---|---|
| L7-0203-71 | G 1/8 x 15.16 |

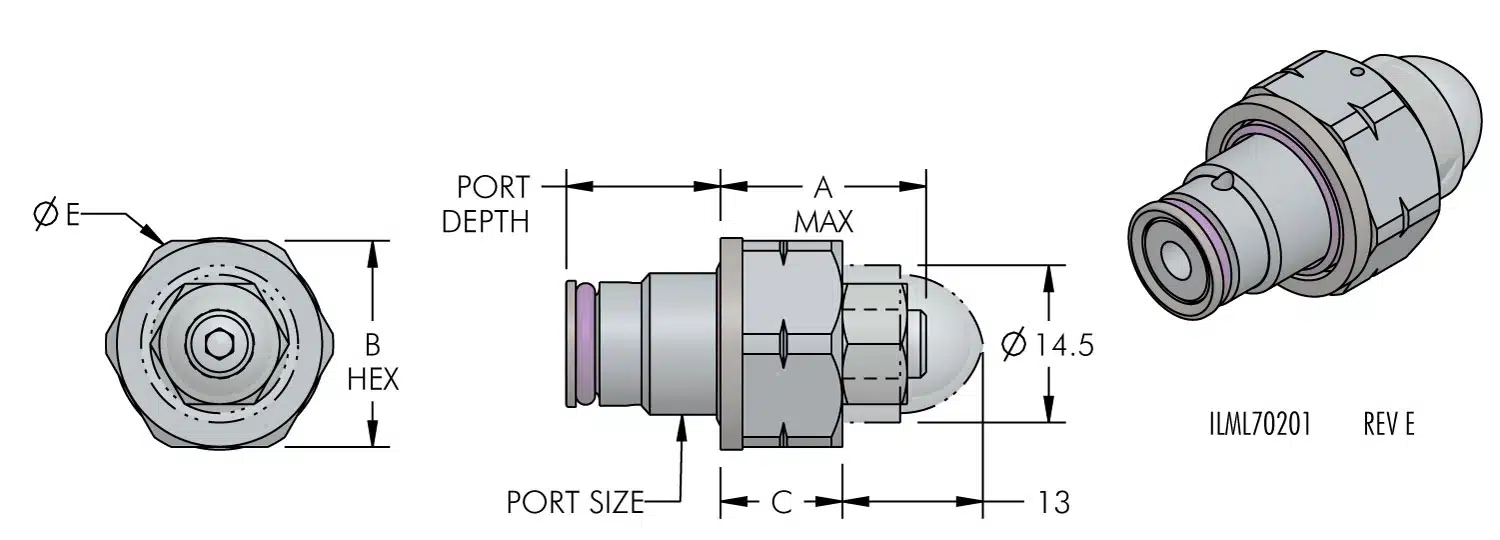

| Model No. | A | B | C | E |
|---|---|---|---|---|
| L7-0203-71 | 20.7 | 14 | 11.1 | 15.9 |

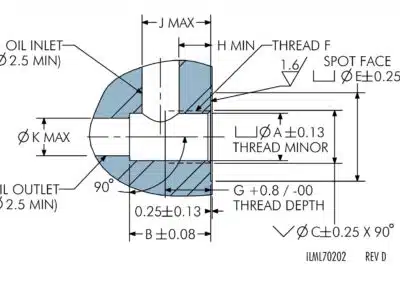

| Model No. | Port Type | A | B | C | E | F | G | H | J | K |
|---|---|---|---|---|---|---|---|---|---|---|
| L7-0203-71 | G 1/8 x 15.16 | 8.84 | 15.16 | 9.9 | 16.5 | 1/8 - 28 BSPP | 8.5 | 6 | 12.83 | 7 |
