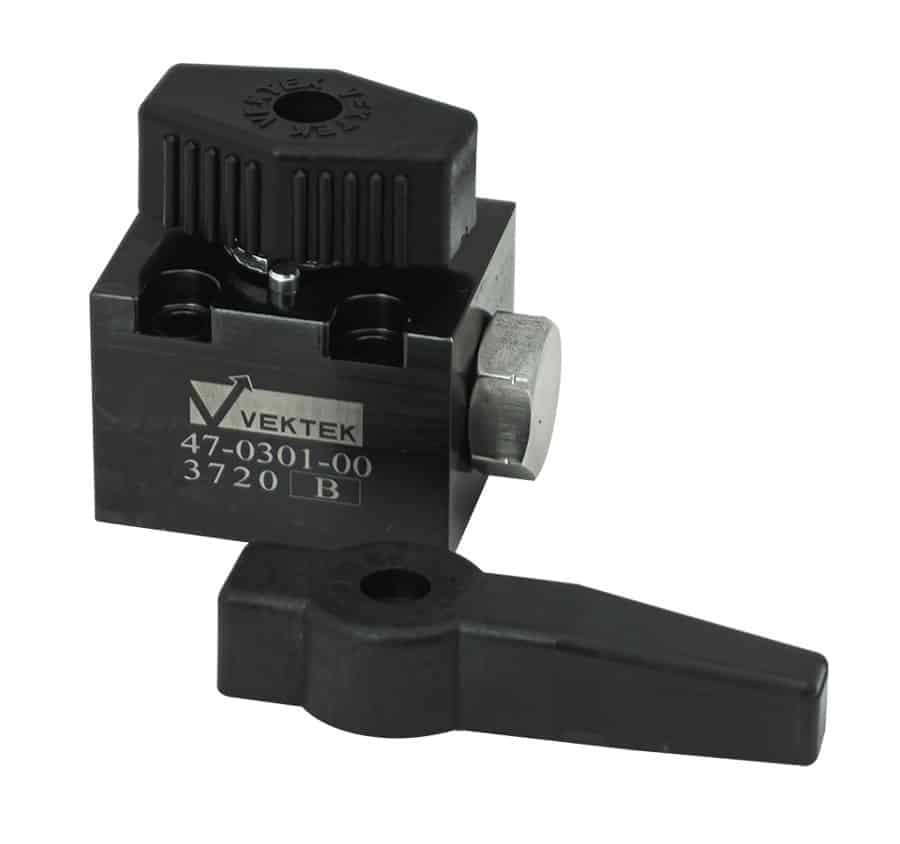

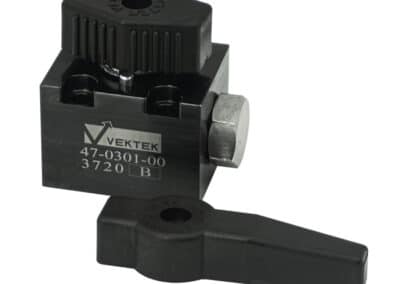

2-Port 2-Position Shut Off Valve
Metric Directional Control Valves
- Oil channel can be closed or open by means of a manual 2-Port 2-Position seat valve.
- Seat valve has complete hydraulic pressure compensation and negative switching.
- Position of installation is optional.
NOTE: The flow direction must be the direction of the arrow according to the symbol. The position of installation is optional.
| Model No. | Valve Configuration | Valve Mounting | Fluid Flow Maximum | Max. Operating Pressure |
|---|---|---|---|---|
| 47-0301-00 | Open Bi-Directional / Closed | Compact Seat | 5.7 l/min | 350 bar (35 MPa) |
