    Electronic Pressure Switch, A-B Tapping Plate

    Pressure Switch

    Catalog Section

    • Electronic Pressure Switch Kits ready to mount under valve kits.
    • Available in A Port, B Port, and A-B Port.
    • 0-5800 psi operating range.
    • Configurable parameters for the following:
      –  Digital, Analog, or IO-Link Outputs
      –  PNP or NPN Digital Switching Outputs
      –  0-10 V or 4-20 mA Analog Output
      –  Hysteresis or Window Function
      –  Normally Open or Normally Closed Function
      –  Units in BAR, mBAR, MPA, KPA, PSI, KGcm
    • Flip Display 180°.
    • Rotate hood for best viewing.

    NOTE: For Electronic Pressure Switch information, click HERE.

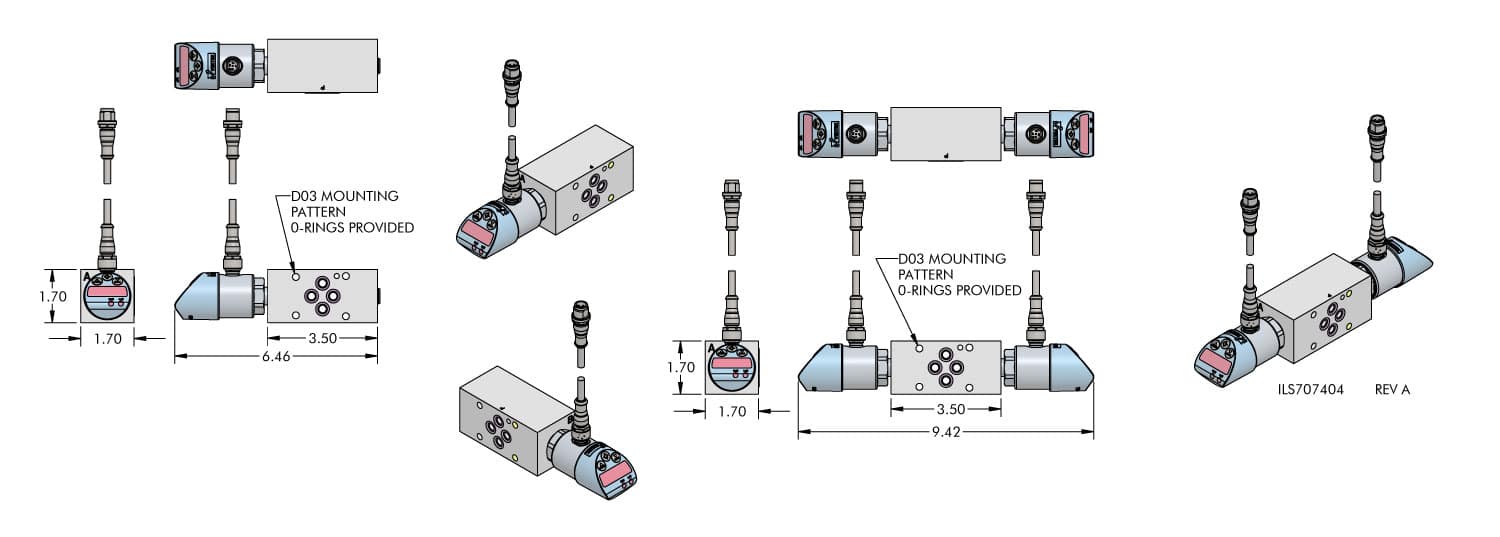

    Electronic Pressure Switch, A-B Tapping Plate
    Model No.DescriptionProduct TypeDescriptionLength (ft.)
    95-5954-63KIT,QA,ELECT,PRESS SWITCH,A PORT,MCAWP IO Module Machine Control EthernetM12 5 Pin Male Straight Female Straight2
    95-5954-64KIT,QB,ELECT,PRESS SWITCH,B PORT,MCAWP IO Module Machine Control EthernetM12 5 Pin Male Straight Female Straight2
    Model No.DescriptionProduct TypeDescriptionLength (ft.)
    95-5954-66KIT,NPN,ELECT,PRESS SWITCH,A PORTCNC Machine NPNM12 5 Pin Male Straight Female Straight16.4
    95-5954-67KIT,NPN,ELECT,PRESS SWITCH,B PORTCNC Machine NPNM12 5 Pin Male Straight Female Straight16.4
    95-5954-68KIT,NPN,ELECT,PRESS SWITCH,A-B PORTCNC Machine NPNM12 5 Pin Male Straight Female Straight16.4
    Model No.DescriptionProduct TypeDescriptionLength (ft.)
    95-5954-57KIT,QA,ELECT,PRESS SWITCH,A PORTCNC Machine PNPM12 5 Pin Male Straight Female Straight16.4
    95-5954-58KIT, PRESSURE SWITCH, DIGITAL, B-PORTCNC Machine PNPM12 5 Pin Male Straight Female Straight16.4
    95-5954-59KIT,QAB,ELECT,PRESS SWITCH,A-B PORTCNC Machine PNPM12 5 Pin Male Straight Female Straight16.4
