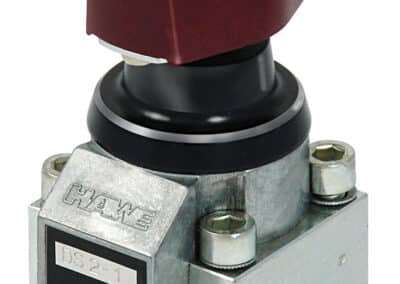

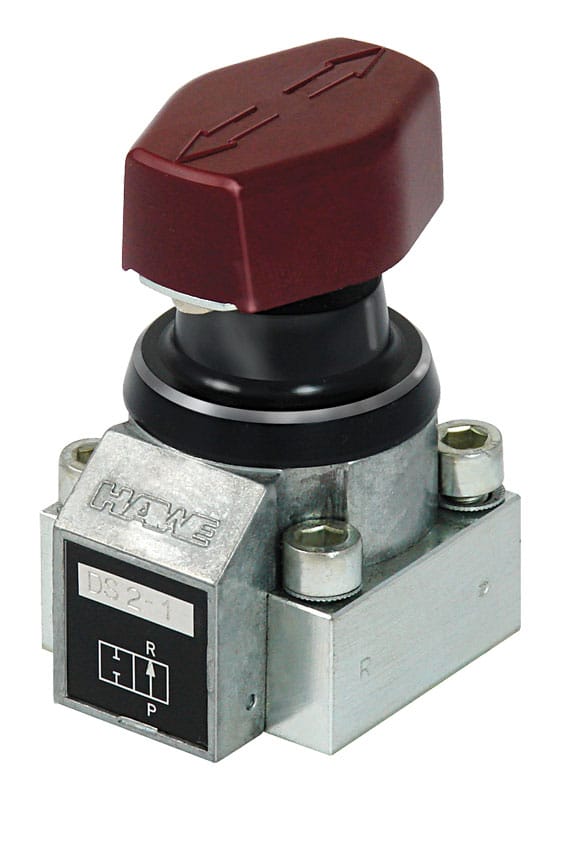

3-Port 2-Position Seat Valve: Manual
Metric Directional Control Valves
- Manual 3-Port 2-Position seat valve allows determination of oil flow direction.
- Seat valve has complete hydraulic pressure compensation and negative switching.
- Position of installation is optional.
NOTE: The flow direction must be the direction of the arrow according to the symbol. The position of installation is optional.

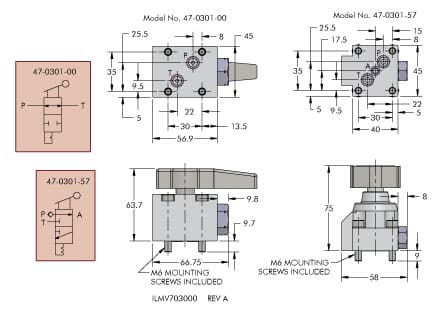

| Model No. | Valve Configuration | Valve Mounting | Fluid Flow Maximum | Max. Operating Pressure |
|---|---|---|---|---|
| 47-0301-57 | Manually Detented | Compact Seat | 12 l/min | 500 bar (50 MPa) |
