Single Path Rotating Union NPT Ports

Miscellaneous Plumbing

Catalog Section

Operating Parameter Guidelines

  • Max. Hydraulic Pressure: 5,000 psi
  • Max. Air Pressure: 200 ps
  • Max. Vacuum: 28 Hg
  • Max. Temperature: 400° F

NOTE: Hoses alone should never be used to control the movement of a rotating union.

Single Path Rotating Union NPT Ports

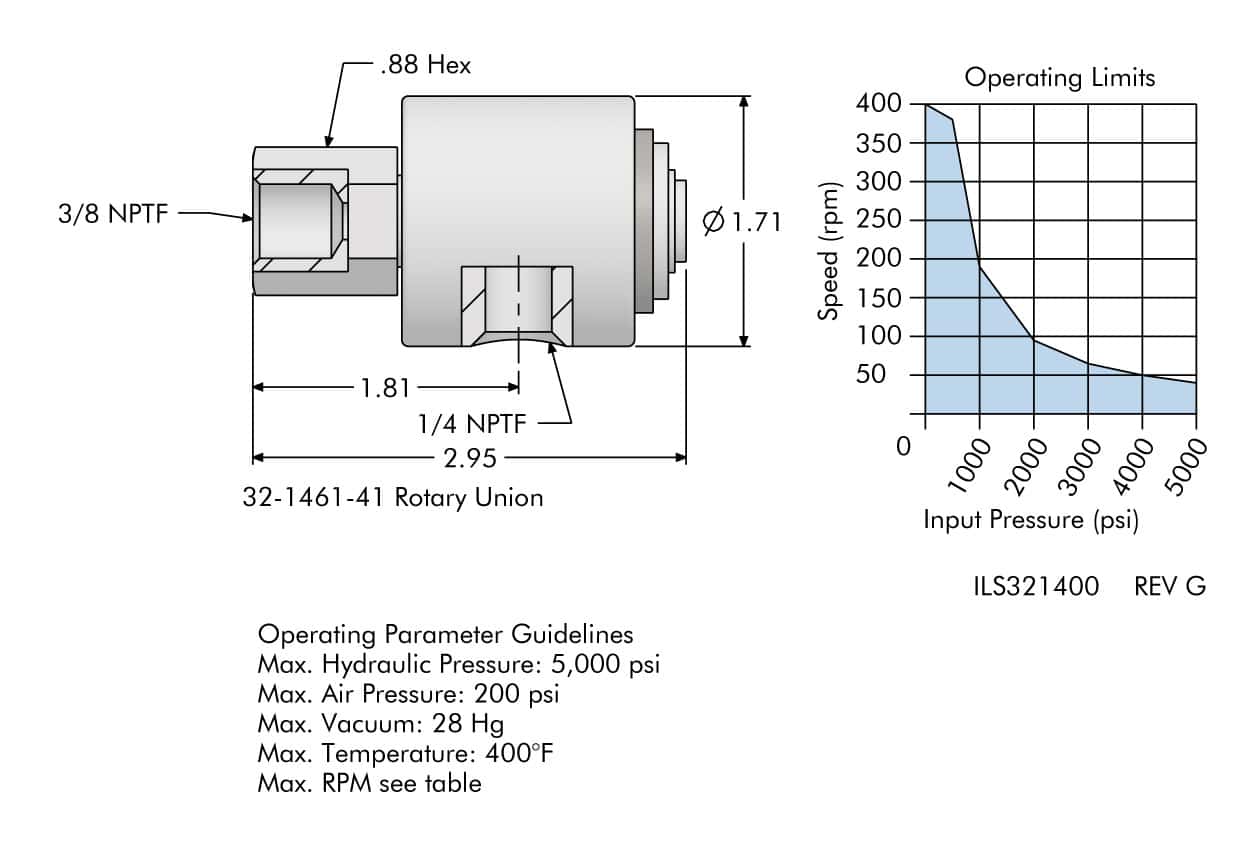

Single Path Rotating Union NPT Port Dimensions
Model No.
32-1461-41
Model No.Max RPM at 500 psi with Petroleum Based FluidsMax RPM at 1000 psi with Petroleum Based FluidsMax RPM at 2000 psi with Petroleum Based FluidsMax RPM at 3000 psi with Petroleum Based FluidsMax RPM at 4000 psi with Petroleum Based FluidsMax RPM at 5000 psi with Petroleum Based Fluids
32-1461-4138019095655040
