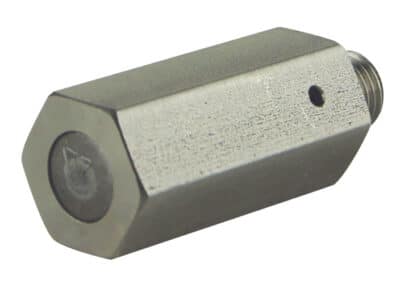

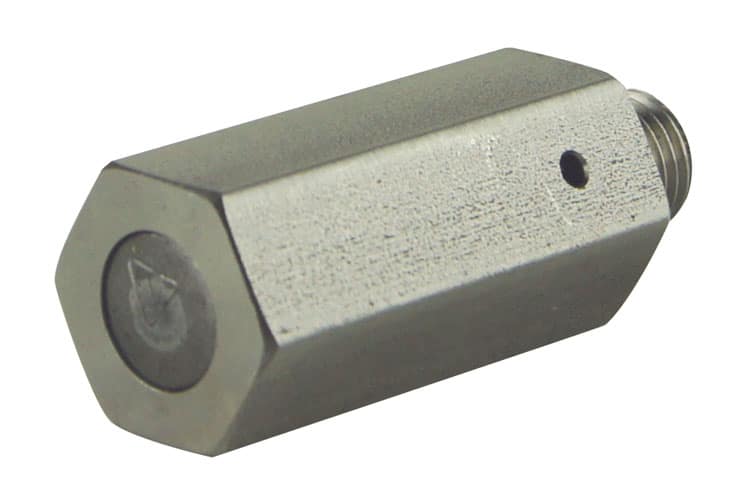

Over Pressure Relief Valve
Accessory Valves
Protect Your Low Pressure Devices running within a High Pressure System.
- Valve cartridge will open to bleed off excess pressure in the event of over-pressurization.
- Screw in valve cartridge adds an extra element of insurance in systems where you must use a pressure sensitive device.

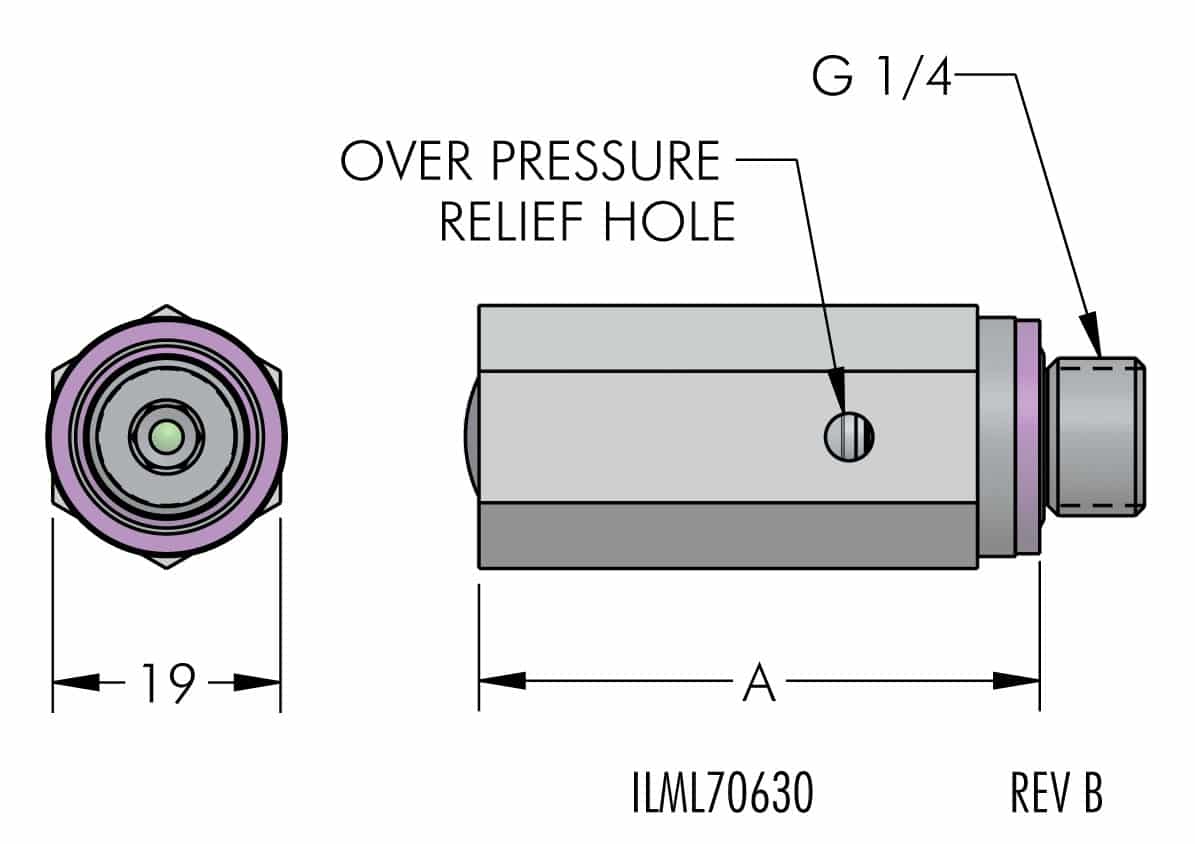

- G1/4 male connection.
- Valve cartridge has a tamper proof plug.
- Leak-free operation before and after reseat condition.
- The only valve cartridge designed to bleed off excess pressure and re-seat at approximately 80% of set point.
| Model No. | Set Point |
|---|---|
| L7-0638-71-02 | 2 MPa |
| L7-0638-71-03 | 3 MPa |
| L7-0638-71-04 | 4 MPa |
| L7-0638-71-05 | 5 MPa |
| L7-0638-71-06 | 6 MPa |
| L7-0638-71-07 | 7 MPa |
| L7-0638-71-08 | 8 MPa |
| L7-0638-71-09 | 9 MPa |
| L7-0638-71-10 | 10 MPa |
