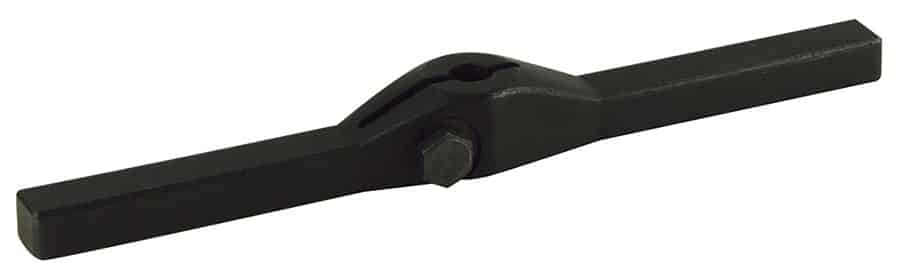

Swing Clamp Arms, Double Ended
Swing Clamp Arms
Find suggested tapped hole location on the TuffCam™ Clocking page or on the VersaCam™ Clocking page. For arm limits, see the Swing Clamp Arms Learn More Page.
| Model No. | Clamp Capacity (lb.) | A | B | C | D | E | F | G | H | J | K | L | M | N | P |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 91-5205-07 | 450 | 2.75 | 5.50 | 1.07 | 0.38 | 0.41 | 0.28 | 0.38 | 22° | 0.28 | 1/4 - 28 | 0.4380 / 0.4400 | 0.50 | 0.32 | 0.63 |
| 91-5209-07 | 1100 | 4.37 | 8.75 | 1.32 | 0.50 | 0.56 | 0.41 | 0.50 | 25° | 0.31 | 5/16 - 24 | 0.625 / 0.627 | 0.71 | 0.48 | 0.88 |
| 91-5213-07 | 2600 | 5.37 | 10.75 | 2.03 | 0.69 | 0.75 | 0.53 | 0.66 | 25° | 0.37 | 3/8 - 24 | 0.875 / 0.877 | 1.00 | 0.60 | 1.25 |
| 91-5218-07 | 5000 | 5.50 | 11.00 | 2.80 | 1.00 | 1.13 | 0.66 | 0.97 | 25° | 0.56 | 5/8 - 18 | 1.250 / 1.252 | 1.44 | 0.73 | 1.75 |
