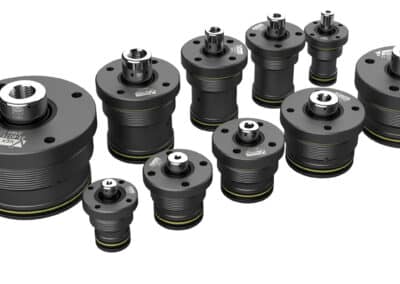

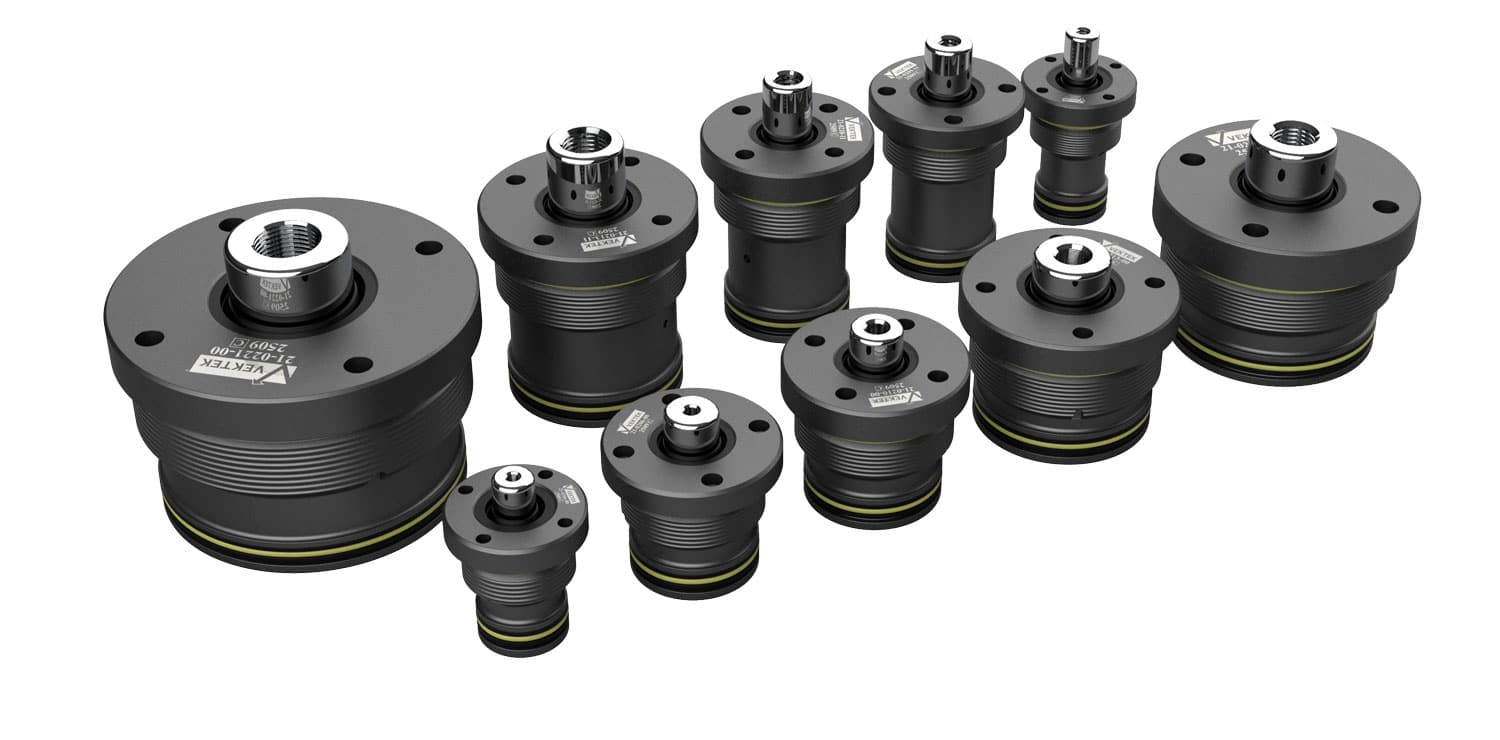

Cartridge Mount Push/Pull Cylinders

​* Cylinder capacity are listed at 5000 PSI operating pressure. The minimum operating pressure is 500 PSI for D/A operation and 750 PSI for S/A operation. The cylinder force is adjustable by varying the hydraulic pressure to the cylinder. To determine the approximate output of the cylinder for your application, divide the cylinder capacity shown above by 5000 PSI, and multiply the resultant by your system pressure in PSI to obtain the approximate cylinder force for your application. (Actual forces will vary slightly due to internal friction and/or return spring force.)
** Cylinder stroke may exceed stroke of clamping element. Limiting cylinder stroke may be required to ensure proper operation of clamping element.
*** At full cylinder capacity, fastener life will be limited and fasteners should be considered service items. Fasteners should be replaced frequently when operating at full capacity to avoid plunger damage. Models 21-0206-00. 21-0209-00, 21-0210-00, and 21-0213-00 not for recommended for use above 2500 PSI.

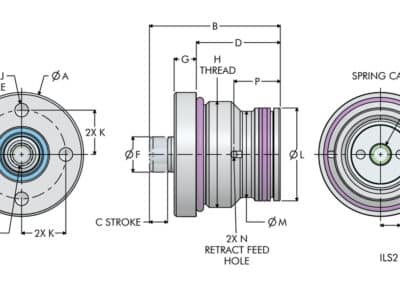

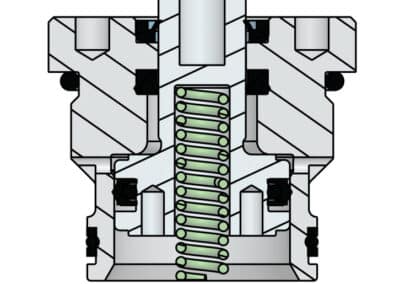

**** Install included return spring for single acting operation. Return spring and anti-rotation pins included with cylinder.

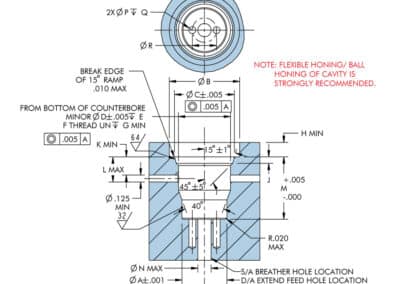

* The 15° and 45° features of the cavity can be formed using an SAE 12 reduced spot Face cutter except on model numbers 21-0206-00 and 21-0206-01.
** N is intended for S/A cylinder only to prevent interference with return spring. For D/A operation the feed can be positioned anywhere in the bottom of the cavity. Install included return spring for S/A operation. Return spring and anti-rotate pins Included with cylinder.
*** Features for use with anti-rotate pins.
**** Lubricate O-Rings with grease prior to installation.
