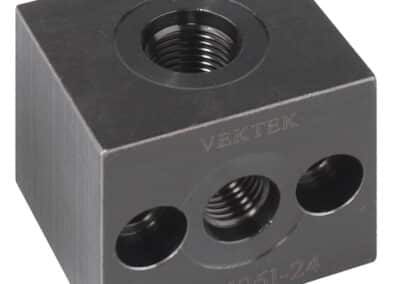

Hydraulic Junction Manifolds
Miscellaneous Plumbing – Manifolds
- Available in two block sizes with a choice of five porting configurations between them.
- Convenient, cost effective connection point for mounting quick connect s on fixtures and pallets.
- Provide secure interface when connecting between rigid steel tubing and flexible hose.
| Model No. | Port Type | Number of Ports |
|---|---|---|
| 31-1241-24 | SAE 4 / SAE 4 | 3 |
| 31-1261-24 | SAE 6 / SAE 4 | 3 |
| 31-1261-26 | SAE 6 / SAE 6 | 3 |
| 31-1264-24 | SAE 4 | 6 |
| 31-1264-46 | SAE 6 | 6 |

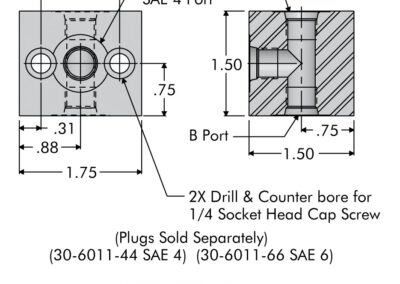

| Model No. | A | B |
|---|---|---|
| 31-1241-24 | SAE 4 | SAE 4 |
| 31-1261-24 | SAE 6 | SAE 4 |
| 31-1261-26 | SAE 6 | SAE 6 |

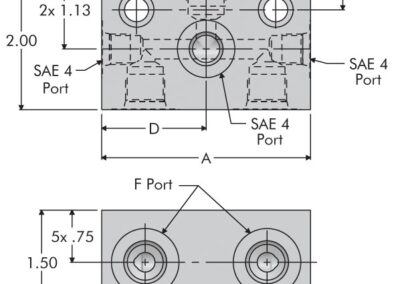

| Model No. | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| 31-1264-24 | 2.50 | 0.38 | 1.75 | 1.25 | 1.25 | SAE 4 |
| 31-1264-46 | 3.00 | 0.50 | 2.00 | 1.50 | 1.75 | SAE 6 |
