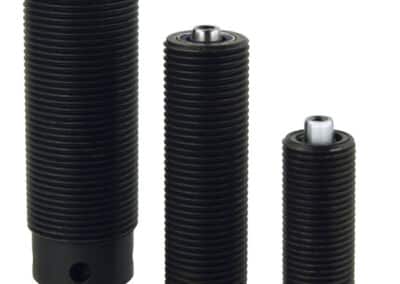

Threaded Mini Cylinders
Single Acting
- Easy to use, basic hydraulic cylinders in SAE ported styles.
- Adjustable force ranging from “negligible” to maximum cylinder capacity, by adjusting the input pressure.
- Designed for long life in high production applications. Don’t gamble with “cheap” cylinders which wear out prematurely.
- Reduce or eliminate part distortion by providing accurate repeatable.
clamping force. - Special tough wipers help keep chips and contaminants out on all cylinder sizes.

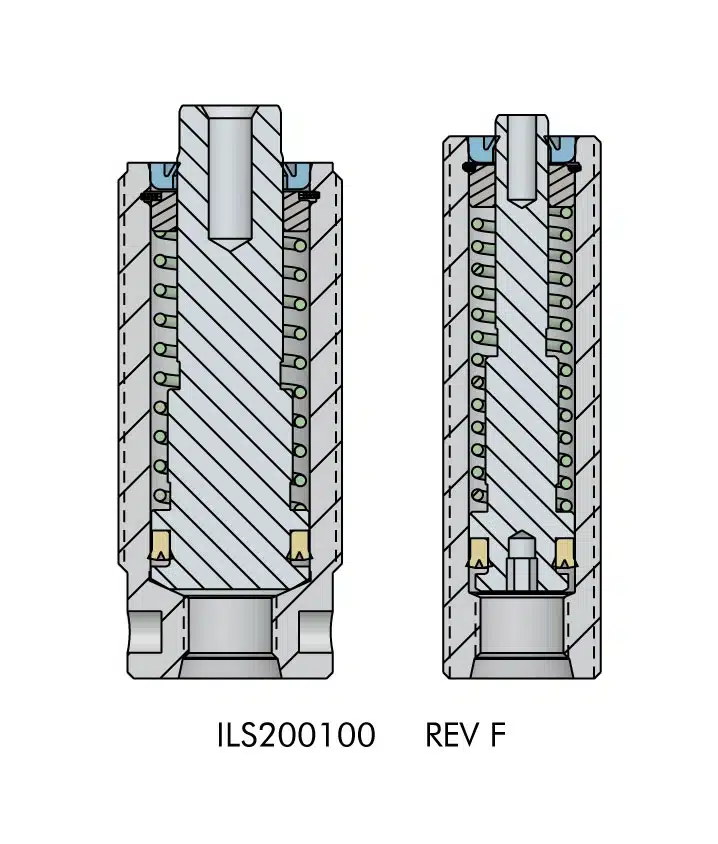

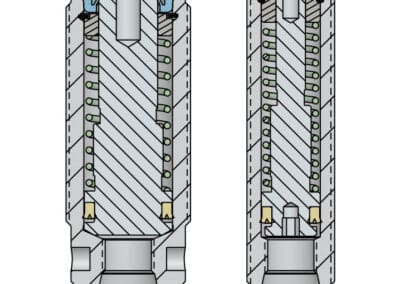

- Positive piston stop shoulder keeps the spring from “bottoming out” guarding against premature spring failure which can plague other cylinder brands.
- Available in three stroke lengths for each capacity, up to 1 1/4″ stroke.
** Cylinder capacities are listed at 5,000 psi maximum operating pressure. The output force is adjustable by varying hydraulic system pressure. To determine approximate output force for your application, multiply the Piston Area by your System Operating Pressure (Actual force may vary slightly due to friction loss, wiper drag and/or return springs.)
Capacity 550/980 lb.
Capacity 2200 lb.
| Model No. | Clamp Capacity (lb.) Extend | Stroke (in.) | Body Thread | Minimum Length (in) | Piston Area (sq. in.) Extend | Oil Capacity Extend (cu. in.) |
|---|---|---|---|---|---|---|
| 20-0104-02 | 550 | 0.25 | 5/8 - 18 | 1.98 | 0.110 | 0.028 |
| 20-0104-07 | 550 | 0.75 | 5/8 - 18 | 2.63 | 0.110 | 0.083 |
| 20-0104-12 | 550 | 1.25 | 5/8 - 18 | 3.23 | 0.110 | 0.138 |
| 20-0105-03 | 980 | 0.38 | 3/4 - 16 | 2.01 | 0.196 | 0.074 |
| 20-0105-07 | 980 | 0.75 | 3/4 - 16 | 2.63 | 0.196 | 0.147 |
| 20-0105-12 | 980 | 1.25 | 3/4 - 16 | 3.29 | 0.196 | 0.245 |
| 20-0108-02 | 2200 | 0.25 | 1 1/16 - 16 | 2.21 | 0.442 | 0.111 |
| 20-0108-07 | 2200 | 0.75 | 1 1/16 - 16 | 2.71 | 0.442 | 0.332 |
| 20-0108-12 | 2200 | 1.25 | 1 1/16 - 16 | 3.41 | 0.442 | 0.553 |

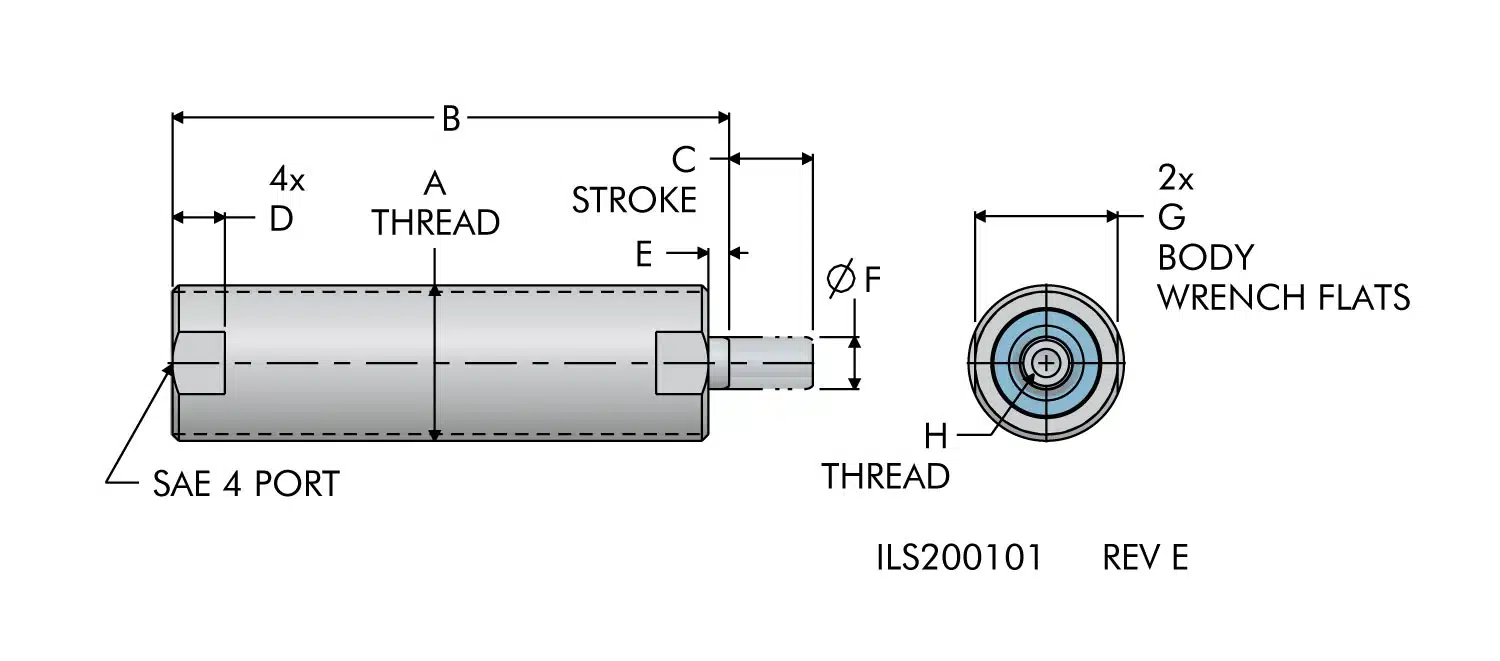

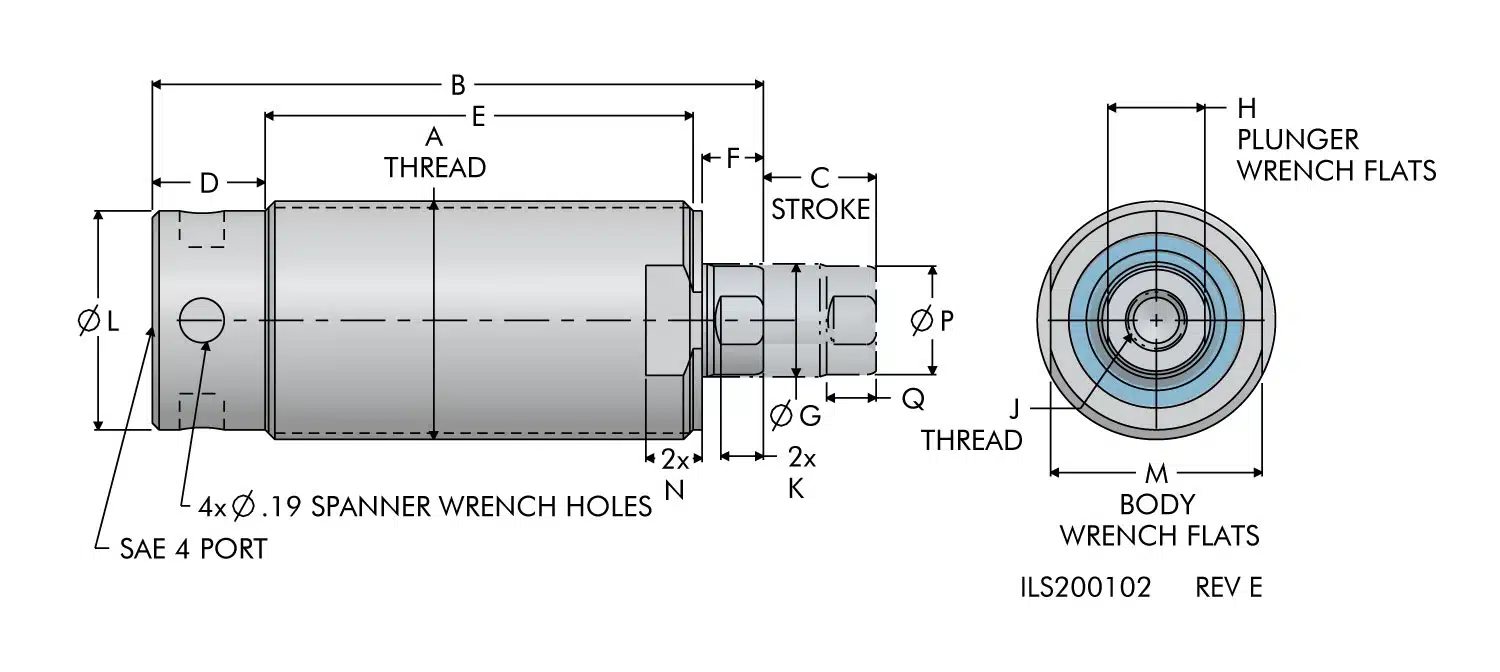

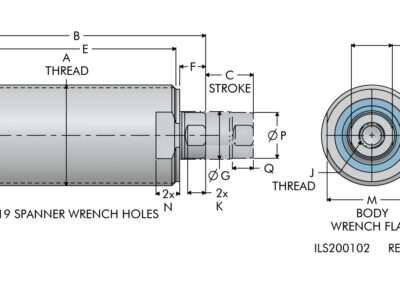

| Model No. | A | B | C | D | E | F | G | H | J | K | L | M | N | P | Q |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20-0104-02 | 5/8 - 18 | 1.98 | 0.25 | 0.25 | 0.10 | 0.25 | 0.56 | 8-32 X 0.25 | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| 20-0104-07 | 5/8 - 18 | 2.65 | 0.75 | 0.25 | 0.15 | 0.25 | 0.56 | 8-32 X 0.25 | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| 20-0104-12 | 5/8 - 18 | 3.23 | 1.25 | 0.25 | 0.10 | 0.25 | 0.56 | 8-32 X 0.25 | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| 20-0105-03 | 3/4 - 16 | 2.01 | 0.38 | 0.25 | 0.07 | 0.25 | 0.68 | 8-32 X 0.25 | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| 20-0105-07 | 3/4 - 16 | 2.63 | 0.75 | 0.25 | 0.07 | 0.25 | 0.68 | 8-32 X 0.25 | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| 20-0105-12 | 3/4 - 16 | 3.29 | 1.25 | 0.25 | 0.07 | 0.25 | 0.68 | 8-32 X 0.25 | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| 20-0108-02 | 1 1/16 - 16 | 2.21 | 0.25 | 0.50 | 1.40 | 0.27 | 0.50 | 0.43 | 1/4 - 20 X 0.44 | 0.19 | 0.97 | 0.94 | 0.25 | 0.48 | 0.22 |
| 20-0108-07 | 1 1/16 - 16 | 2.71 | 0.75 | 0.50 | 1.90 | 0.27 | 0.50 | 0.43 | 1/4 - 20 X 0.44 | 0.19 | 0.97 | 0.94 | 0.25 | 0.48 | 0.22 |
| 20-0108-12 | 1 1/16 - 16 | 3.41 | 1.25 | 0.50 | 2.65 | 0.22 | 0.50 | 0.43 | 1/4 - 20 X 0.44 | 0.19 | 0.97 | 0.94 | 0.25 | 0.48 | 0.22 |
