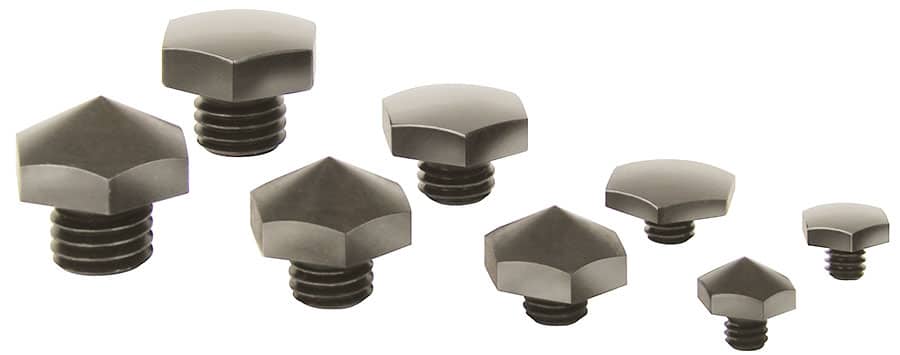

Spherical Contact Points and Conical Contact Points

Contact Points have been carburized RC 37-42

End Effectors

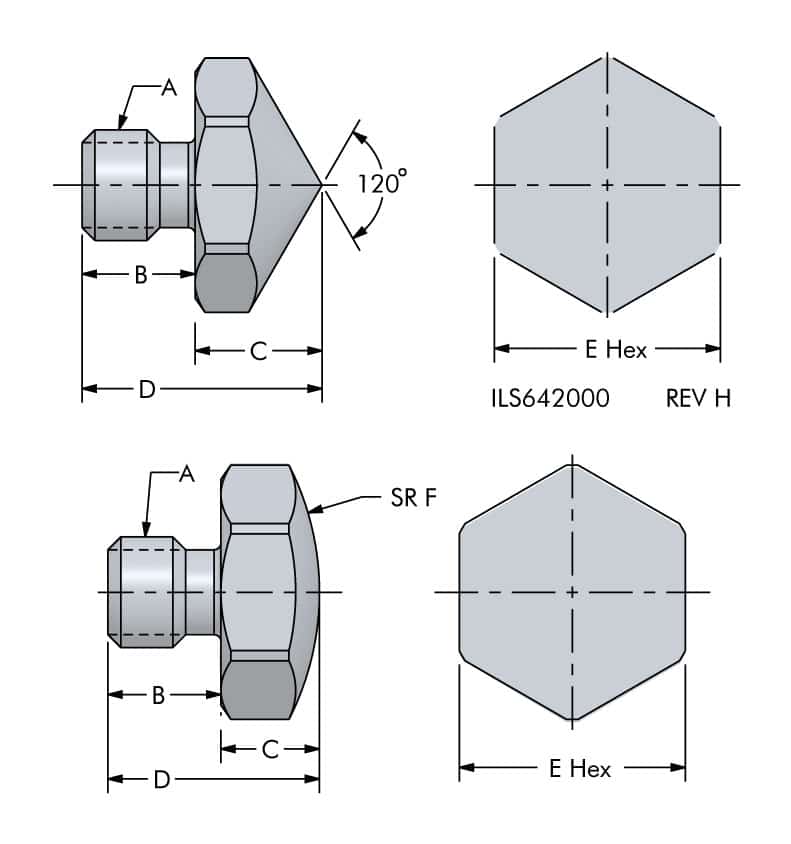

End Effectors Dimensions

Model No.	A	B	C	D	E	F
64-2004-10	1/4 - 20 UNC	0.25	0.28	0.53	0.50	N/A
64-2004-20	1/4 - 28 UNF	0.25	0.28	0.53	0.50	N/A
64-2005-10	5/16 - 18 UNC	0.25	0.38	0.63	0.75	N/A
64-2005-20	5/16 - 24 UNF	0.25	0.38	0.63	0.75	N/A
64-2006-10	3/8 - 16 UNC	0.25	0.44	0.69	0.75	N/A
64-2006-20	3/8 - 24 UNF	0.25	0.44	0.69	0.75	N/A
64-2007-10	7/16 - 14 UNC	0.25	0.38	0.63	0.63	N/A
64-2008-10	1/2 - 13 UNC	0.38	0.50	0.88	0.88	N/A
64-2008-20	1/2 - 20 UNF	0.38	0.50	0.88	0.88	N/A
64-2009-10	5/8 - 11 UNC	0.50	0.56	1.06	1.00	N/A
64-2009-20	5/8 - 18 UNF	0.50	0.56	1.06	1.00	N/A

Model No.	A	B	C	D	E	F
64-2102-10	8-32 UNC	0.17	0.08	0.25	0.21	0.50
64-2103-10	10-24 UNC	0.17	0.11	0.25	0.28	0.63
64-2104-10	1/4 - 20 UNC	0.25	0.22	0.47	0.50	0.63
64-2104-20	1/4 - 28 UNF	0.25	0.22	0.47	0.50	0.63
64-2105-10	5/16 - 18 UNC	0.25	0.19	0.44	0.75	1.25
64-2105-20	5/16 - 24 UNF	0.25	0.19	0.44	0.75	1.25
64-2106-10	3/8 - 16 UNC	0.31	0.25	0.56	0.75	1.25
64-2106-20	3/8 - 24 UNF	0.31	0.25	0.56	0.75	1.25
64-2107-10	7/16 - 14 UNC	0.25	0.25	0.50	0.63	0.75
64-2108-10	1/2 - 13 UNC	0.38	0.31	0.69	0.88	1.50
64-2108-20	1/2 - 20 UNF	0.38	0.31	0.69	0.88	1.50
64-2109-10	5/8 - 11 UNC	0.50	0.38	0.88	1.00	2.00
64-2109-20	5/8 - 18 UNF	0.50	0.38	0.88	1.00	2.00
64-2110-20	9/16-18 UNF	0.31	0.22	0.53	0.62	1.75
64-2111-20	3/4-16 UNF	0.50	0.38	0.83	1.00	2.00
