Pressure Confirmation Cylinder
Confirmation and Feedback
For use detecting circuit pressure on decoupled pallets using customer supplied machine postition sensing probe.
Install this unit with ease, as there are no external wires required.
- Great for use on small pallets where space is of the essence.
- Can be used on rotating pallets.
- Design allows for versatile mounting in any SAE 4 port regardless of orientation.
- Usable on multi-circuit pallets. (One unit required per circuit.)
- Probe extends Appx. 0.1” when pressurized.

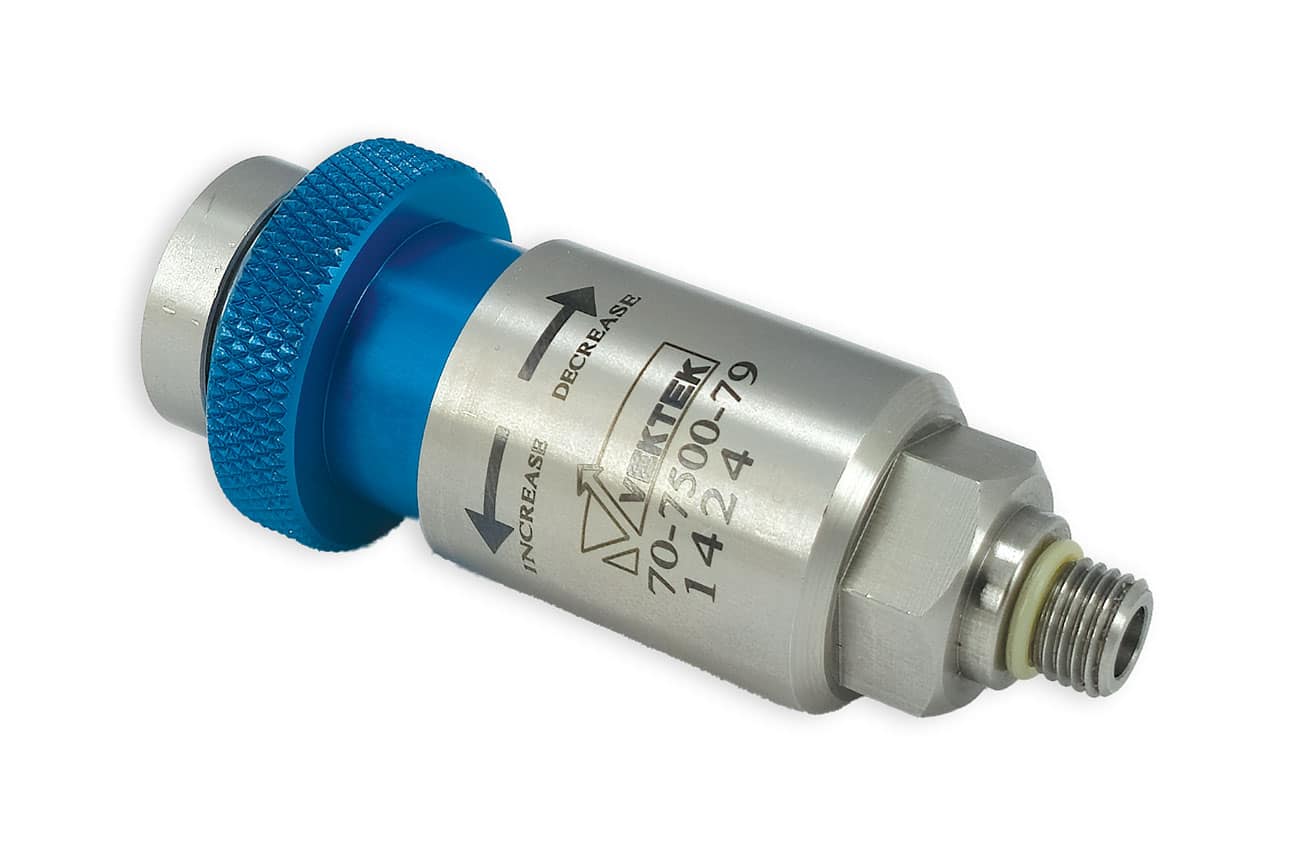

- Pressure can be easily changed by turning blue pressure adjustment collar.
| Model No. | Pressure Range (psi.) | Deadband | Tolerance |
|---|---|---|---|
| 70-7500-79 | 1500 - 5000 psi | 300 psi (6 - 20%) | ± 0.00155" |
