Handle Docking Station
Metric Palletized Fixtures Accessories
Handle Docking Station with optional feedback sensor
A Docking Station is now available for the 1-Handed and 2-Handed Automatic Shutoff Pallet Decoupler Handles. This handy device provides a standard contamination-free location for quick-disconnect handle storage. The Handle Docking Station has a drain pan to keep your work area free of slip and fall hazards created by dripping disconnects.
- The optional Proximity Switch confirms the decoupler handle and hoses are connected to the docking station. The pallet can then be safely shuttled into the machine.

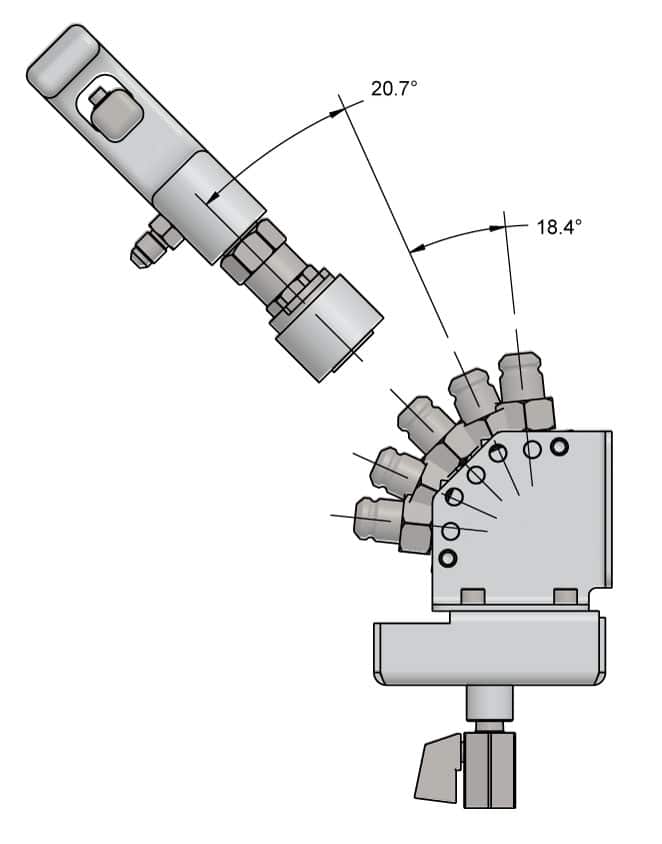

- Adjustable five positions ensure the Docking Station is ergonomically friendly for operators.
- Couplers are BHC™ treated for long life.

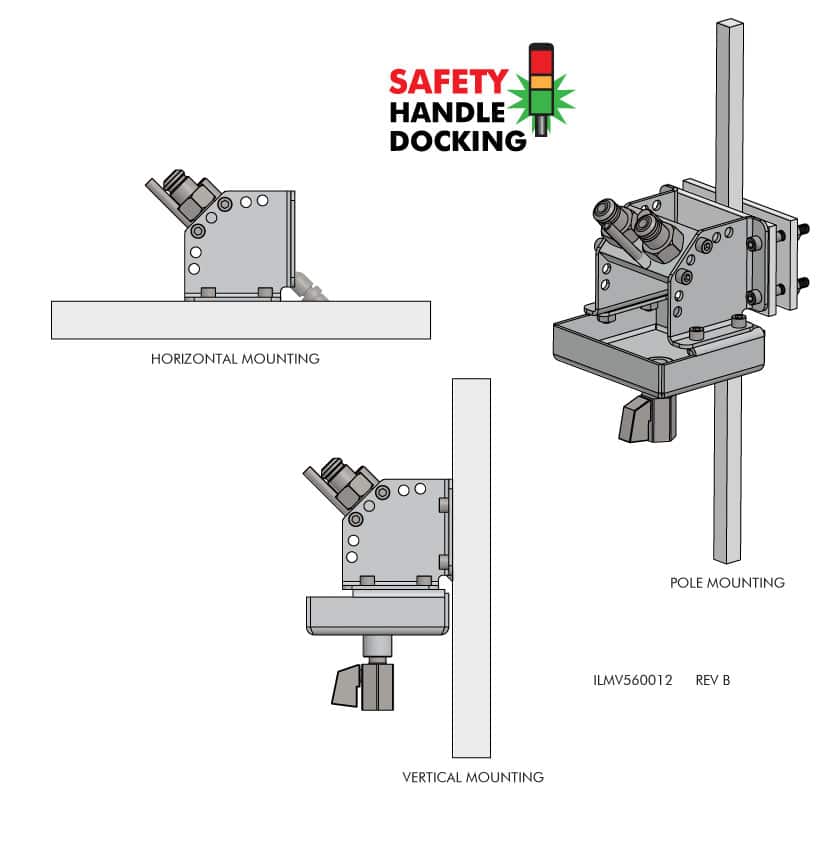

- Flexible mounting allows for vertical, horizontal or pole applications.

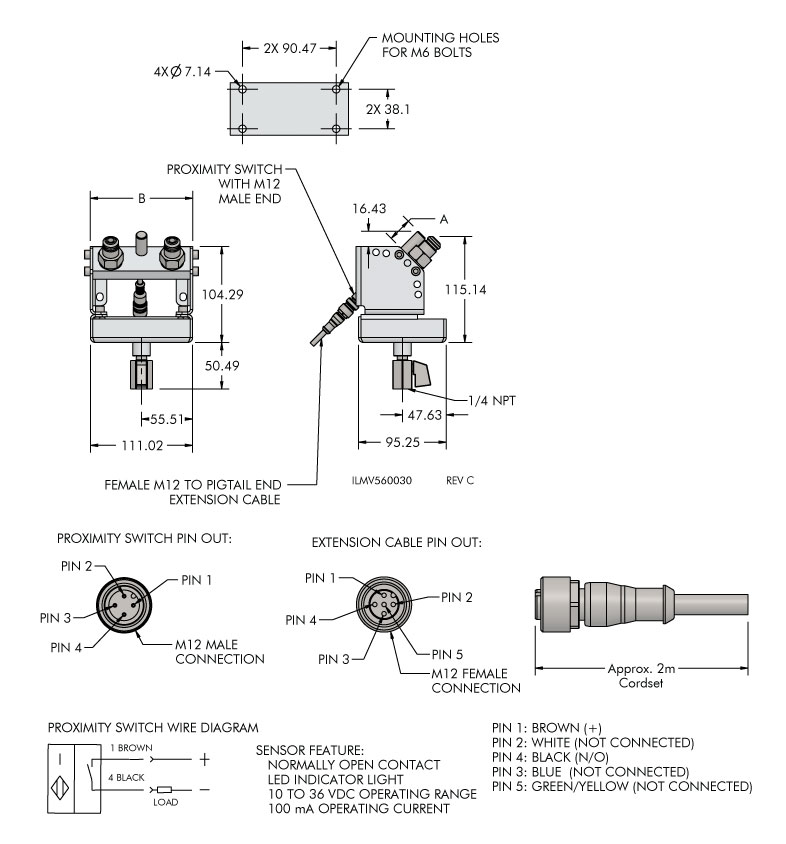

- Mounting holes for M6 Diameter bolts.
| Model No. | Proximity Switch | Handle Size | A Proximity Switch Height | B Dock Width |
|---|---|---|---|---|
| 45-6008-01 | No | One-Hand | N/A | 74.9 |
| 45-6008-02 | Yes | One-Hand | 17.3 | 74.9 |
