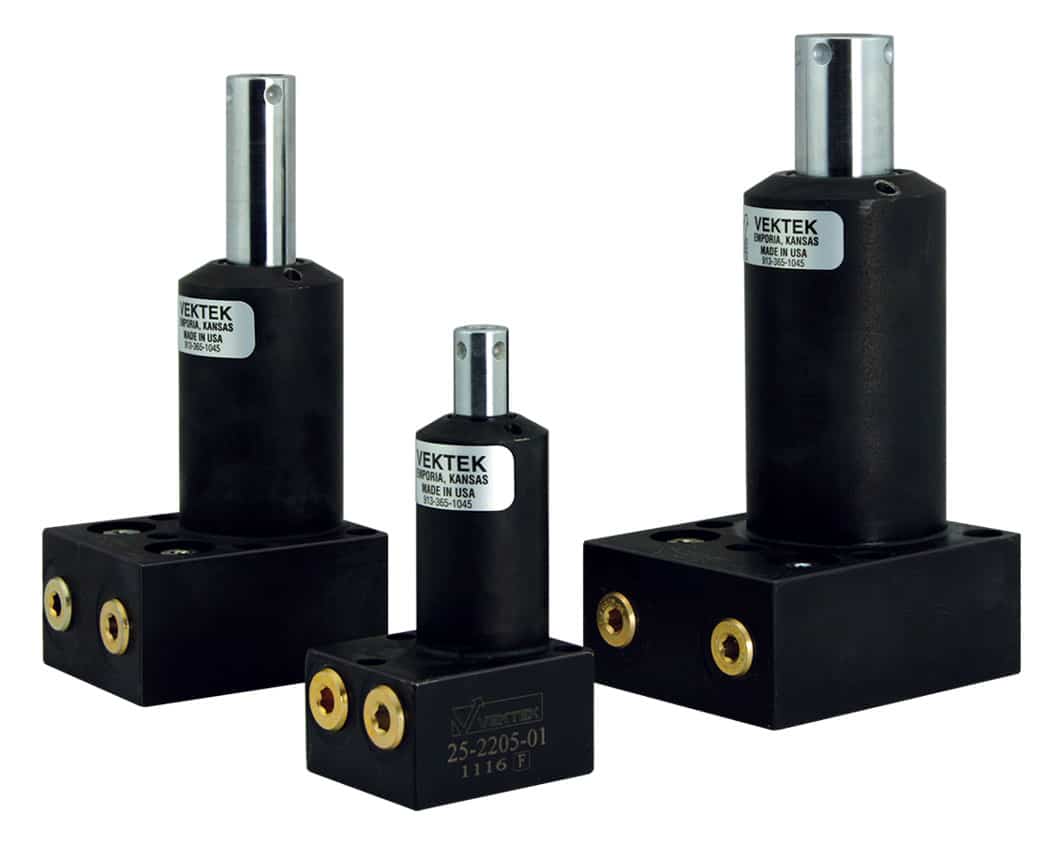

Bottom Flange Manifold Push Pull Cylinders

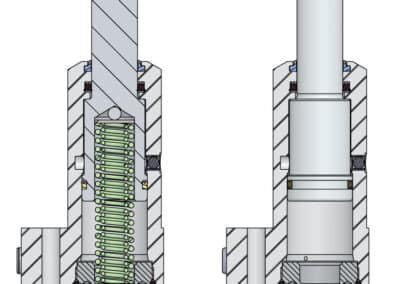

Single And Double Acting
- Double acting have an extended capacity of 1200 to 6100lb., depending on operating pressure. Their retract capacities are the same as the single acting, at the same operating pressures.
- Mounting versatility allows the unit to be bolted up, bolted down, or to be traditionally mounted.
- Single piece body and mounting give a rigid installation without additional mounting hardware to buy, saving time and money.
- Also available in a straight line guided model, order as swing clamp.
- Optional In-Port Flow Control is a meter-in device with reverse free flow check valve.
- Optional In-Port Sequence valve is a sequencing device with reverse free flow check valve.
BHC™ (Black Hard Coating) on the cylinder bodies and rod bearing surface helps prevent scoring and scratching especially in the event of high side kick loads which promote excessive scoring in many other brands. SAE porting from three directions gives you five alternatives. You can use standard fittings in any of the three sets of ports or manifold by bolting up or down. Hardened chrome alloy steel plungers run longer with less wear and drag than other brands. Push/Pull Cylinders are not shipped with cap screws.
** Cylinder capacities are listed at 5,000 psi maximum operating pressure. The output force is adjustable by varying the hydraulic system pressure. To determine approximate output force for your application, multiply the piston area by your system operating pressure. (Actual force may vary slightly due to friction loss, seal and wiper drag and/or return springs.)
*** In-Port Valves require the use of manifold mount ports.
For proper sealing, mating surface must be flat within 0.003 with a maximum 63 µin Ra surface finish.
* Models 25-2105-01 and 25-2205-01 do not include the option for manifold mounting on the top surface. All models are shipped with the necessary plugs and O-Rings for manifold mounting.
** All five mounting screws must be used when manifold mounting to assure a leak free O-Ring seal.
| Model No. | Clamp Capacity (lb.) Extend | Clamp Capacity (lb.) Retract | Stroke (in.) | Piston Area (sq. in.) Extend | Piston Area (sq. in.) Retract | Oil Capacity Extend (cu. in.) | Oil Capacity Retract (cu. in.) | Port X For Optional In-Port Valves |
|---|---|---|---|---|---|---|---|---|
| 25-2105-02 | N/A | 470 | 0.57 | N/A | 0.098 | N/A | 0.056 | SAE 4 X 0.58 |
| 25-2109-02 | N/A | 1400 | 0.79 | N/A | 0.295 | N/A | 0.233 | SAE 4 X 0.75 |
| 25-2113-02 | N/A | 3100 | 1.16 | N/A | 0.626 | N/A | 0.726 | SAE 4 X 0.75 |
| Model No. | Clamp Capacity (lb.) Extend | Clamp Capacity (lb.) Retract | Stroke (in.) | Piston Area (sq. in.) Extend | Piston Area (sq. in.) Retract | Oil Capacity Extend (cu. in.) | Oil Capacity Retract (cu. in.) | Port X For Optional In-Port Valves |
|---|---|---|---|---|---|---|---|---|
| 25-2205-02 | 1200 | 470 | 0.57 | 0.249 | 0.098 | 0.142 | 0.056 | SAE 4 X 0.58 |
| 25-2209-02 | 3000 | 1400 | 0.79 | 0.601 | 0.295 | 0.475 | 0.233 | SAE 4 X 0.75 |
| 25-2213-02 | 6100 | 3100 | 1.16 | 1.227 | 0.626 | 1.423 | 0.726 | SAE 4 X 0.75 |
| Model No. | A | C | D | E | F | G | H | J | K | M | P | Q | R | S | T | V | W | X | Y | Z |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 25-2105-02 | 1.05 | 4.06 | 2.80 | 1.00 | SAE 4 | 0.438 | 0.38 | 0.66 | Breather | 0.57 | 1/4 - 28 X 0.28 | 1.06 | 0.38 | 0.53 | 0.75 | 0.59 | 1.50 | 1.73 | 0.22 | 0.81 |
| 25-2109-02 | 1.49 | 5.33 | 3.65 | 1.25 | SAE 4 | 0.625 | 0.56 | 0.63 | Breather | 0.79 | 3/8-24 X 0.47 | 0.99 | 0.56 | 0.75 | 1.00 | 0.81 | 2.00 | 2.41 | 0.28 | 1.13 |
| 25-2113-02 | 1.79 | 6.83 | 4.43 | 1.25 | SAE 4 | 0.875 | 0.75 | 0.63 | Breather | 1.16 | 1/2-20 X 0.52 | 1.21 | 0.69 | 0.94 | 1.25 | 1.00 | 2.50 | 2.72 | 0.34 | 1.25 |
| Model No. | A | C | D | E | F | G | H | J | K | M | P | Q | R | S | T | V | W | X | Y | Z |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 25-2205-02 | 1.05 | 4.06 | 2.80 | 1.00 | SAE 4 | 0.438 | 0.38 | 0.66 | SAE 4 | 0.57 | 1/4-28 X 0.28 | 1.06 | 0.38 | 0.53 | 0.75 | 0.59 | 1.50 | 1.73 | 0.22 | 0.81 |
| 25-2209-02 | 1.49 | 5.33 | 3.65 | 1.25 | SAE 4 | 0.625 | 0.56 | 0.63 | SAE 4 | 0.79 | 3/8-24 X 0.47 | 0.99 | 0.56 | 0.75 | 1.00 | 0.81 | 2.00 | 2.41 | 0.28 | 1.13 |
| 25-2213-02 | 1.79 | 6.83 | 4.43 | 1.25 | SAE 4 | 0.875 | 0.75 | 0.63 | SAE 4 | 1.16 | 1/2-20 X 0.52 | 1.21 | 0.69 | 0.94 | 1.25 | 1.00 | 2.50 | 2.72 | 0.34 | 1.25 |
