NEW! Ultrasonic Sensing with DATALINK

Ultrasonic Sensing Technology

Data Link System

• Simple setup and programming.
• HMI touchscreen for easy monitoring and trouble shooting.
• On-demand, accurate, and repeatable position confirmation (repeatable within 0.002″).
• Programming is as simple as clamping a part and teaching location with one button.
• Communicate to the machine through discrete IO.
• Clamp/Unclamp location tolerance can be set as low as +/-0.010″.

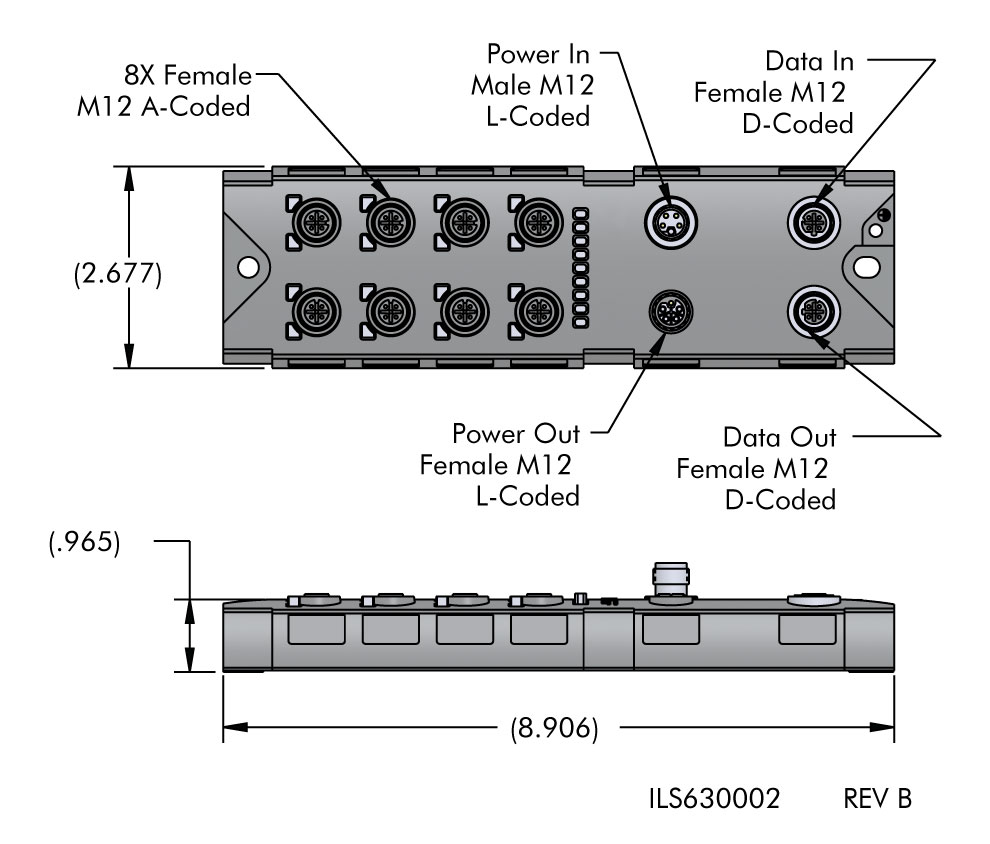

8 Port IO Module

• IO Module supports up to 8 ultrasonic clamps.
• IO Link communication through M12 D-Coded cable.
• Data Link System supports up to 5 IO Modules linked together (power and data cables needed for each module).
