NEW! Cables for Ultrasonic Clamps
Accessories

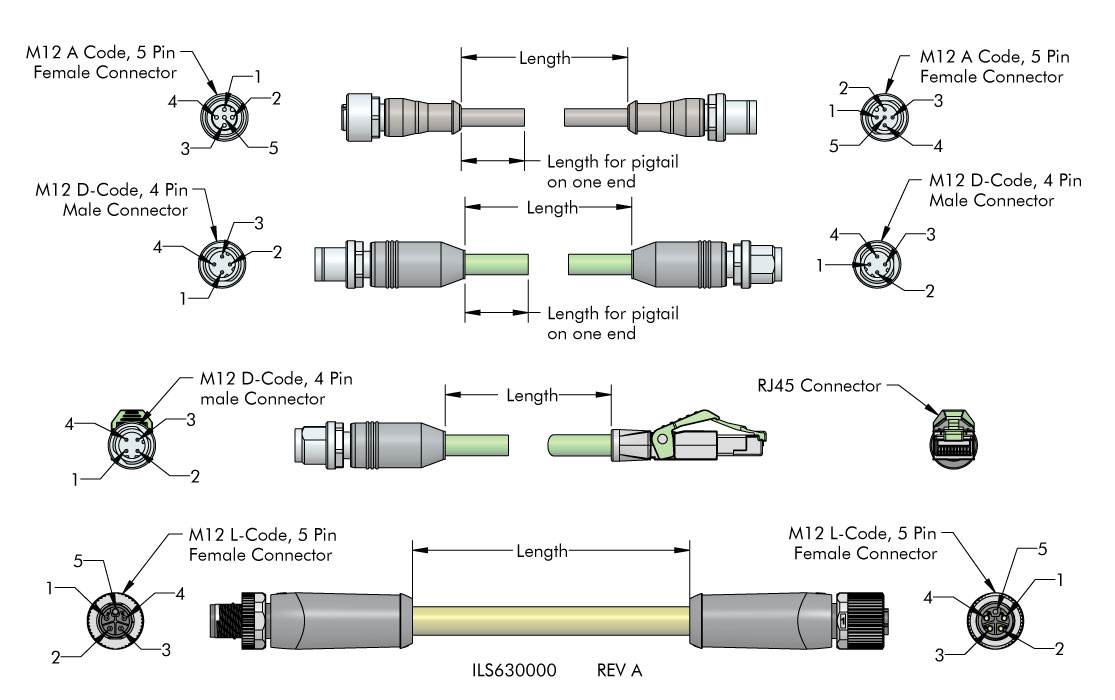

| Model No. | Function | End 1 Connection | End 2 Connection | Length (ft.) |
|---|---|---|---|---|
| 27-5422-00 | Data Link Output to User Equipment | Male Straight | Pigtail | 6.5 |
| 27-5422-01 | Data Link Output to User Equipment | Male Straight | Pigtail | 16.4 |
| 27-6422-01 | Data Link Input to User Equipment | Female Straight | Pigtail | 6.5 |
| 27-7422-03 | Ultrasonic Sensor Extension Cable | Female Straight | Male Straight | 16.4 |
| 27-7422-06 | Ultrasonic Sensor Extension Cable | Female Straight | Male Straight | 6.5 |
| 27-7422-28 | Ultrasonic Sensor Extension Cable | Female Straight | Male Straight | 1 |
| 27-7422-30 | Data Link Input to User Equipment | Female Straight | Pigtail | 16.4 |
| Model No. | Function | End 1 Connection | End 2 Connection | Length (ft.) |
|---|---|---|---|---|
| 27-7422-11 | Data Link IO Communication to User Equipment | Male Straight | RJ45 | 16.4 |
| 27-7422-22 | Data Link to IO Module/ IO Module to IO Module | Male Straight | Male Straight | 1 |
| 27-7422-23 | Data Link to IO Module/ IO Module to IO Module | Male Straight | Male Straight | 6.5 |
| 27-7422-24 | Data Link to IO Module/ IO Module to IO Module | Male Straight | Male Straight | 16.4 |
| 27-7422-31 | Data Link IO Communication to User Equipment | Male Straight | RJ45 | 6.5 |
| 27-7422-32 | Data Link IO Communication to User Equipment | Male Straight | Pigtail | 6.5 |
| 27-7422-33 | Data Link IO Communication to User Equipment | Male Straight | Pigtail | 16.4 |
| Model No. | Function | End 1 Connection | End 2 Connection | Length (ft.) |
|---|---|---|---|---|
| 27-7422-25 | Data Link Pwr to IO Module/ IO Module to IO Module | Male Straight | Female Straight | 1 |
| 27-7422-26 | Data Link Pwr to IO Module/ IO Module to IO Module | Male Straight | Female Straight | 6.5 |
| 27-7422-27 | Data Link Pwr to IO Module/ IO Module to IO Module | Male Straight | Female Straight | 16.4 |
