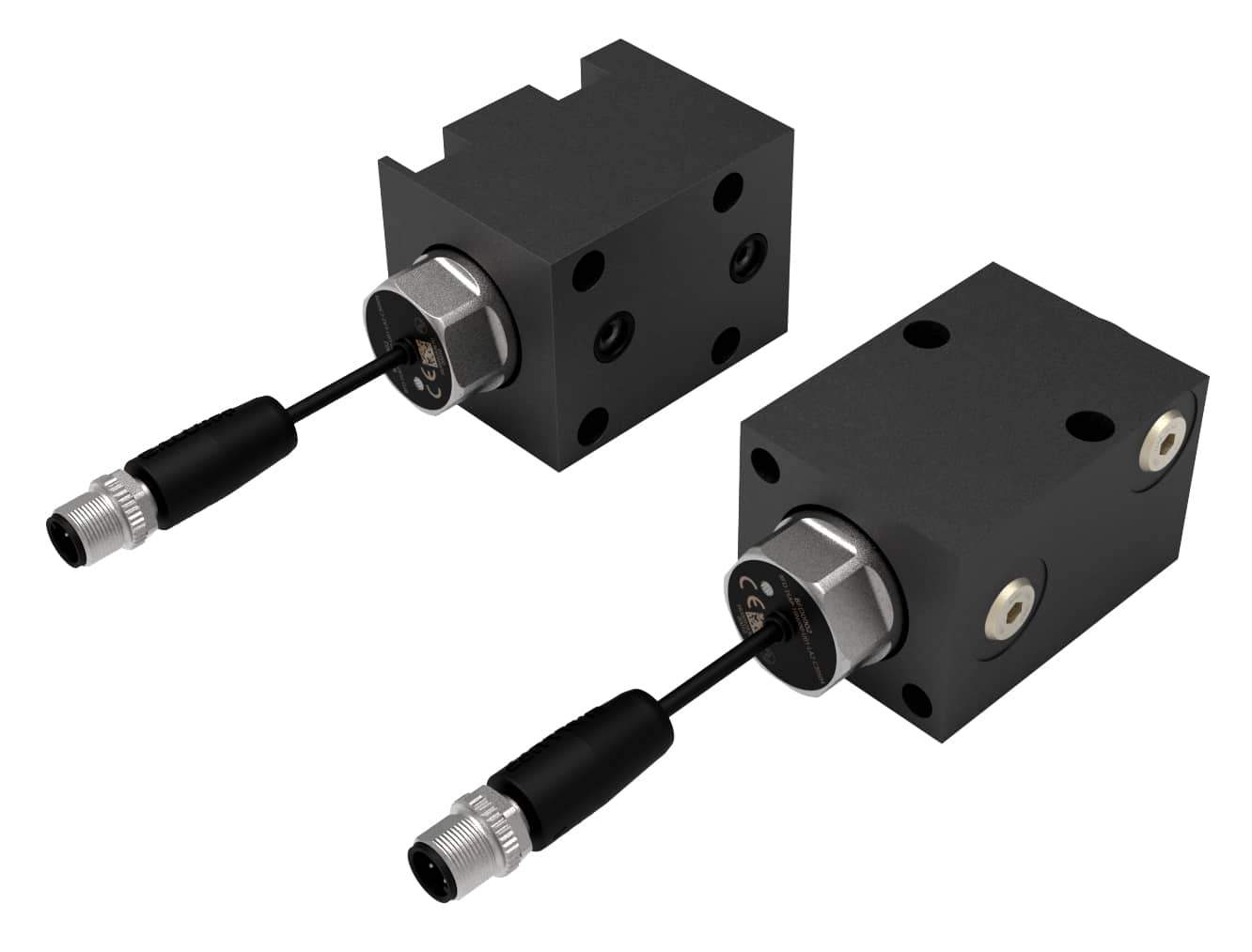

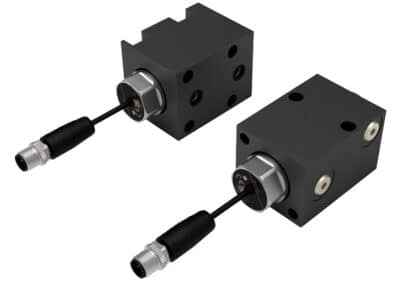

NEW! Ultrasonic Position Sensing Block Body Cylinders
Ultrasonic Position Sensing Clamps
- Available as Block Body or Manifold Mount Block Body with capacities of 3,900 lbs. and 8,800 lbs. Stroke limited to 2 in or smaller.
- Ultrasonic Position Sensing provides live position feedback with high accuracy and repeatability.
- Ultrasonic Clamps can be used with the Data Link System (DLS) for easy integration.

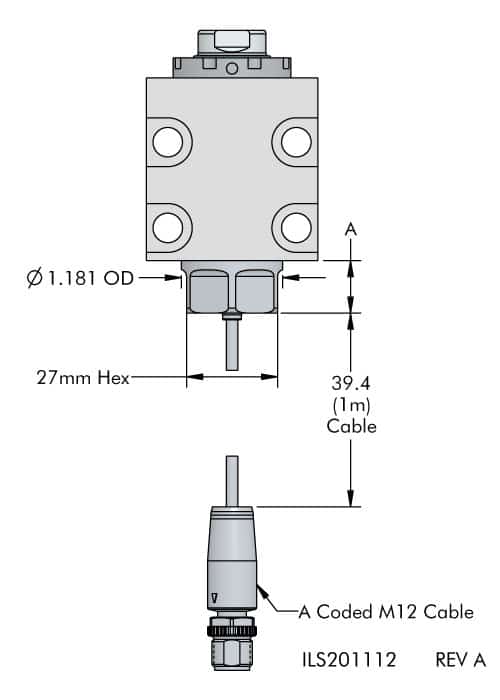

- All dimensions between standard Block Body Cylinders and Ultrasonic Block Body Cylinders are the same except for those noted in the table and drawing.
| Model No. | Mounting Style | Clamp Capacity (lb.) | Stroke | A |
|---|---|---|---|---|
| 20-1210-00-US | Block | 3,900 | 0.5 | 0.464 |
| 20-1210-01-US | Block | 3,900 | 1.0 | 0.464 |
| 20-1210-02-US | Block | 3,900 | 1.5 | 0.464 |
| 20-1210-04-US | Block | 3,900 | 2.0 | 0.464 |
| 20-1215-00-US | Block | 8,800 | 0.5 | 0.464 |
| 20-1215-01-US | Block | 8,800 | 1.0 | 0.464 |
| 20-1215-02-US | Block | 8,800 | 1.5 | 0.464 |
| 20-1215-04-US | Block | 8,800 | 2.0 | 0.464 |
| Model No. | Mounting Style | Clamp Capacity (lb.) | Stroke | A |
|---|---|---|---|---|
| 21-1210-00-US | Manifold Mount Block | 3,900 | 0.5 | 0.614 |
| 21-1210-01-US | Manifold Mount Block | 3,900 | 1.0 | 0.614 |
| 21-1210-02-US | Manifold Mount Block | 3,900 | 1.5 | 0.614 |
| 21-1210-04-US | Manifold Mount Block | 3,900 | 2.0 | 0.614 |
| 21-1215-01-US | Manifold Mount Block | 8,800 | 0.5 | 0.614 |
| 21-1215-02-US | Manifold Mount Block | 8,800 | 1.0 | 0.614 |
| 21-1215-04-US | Manifold Mount Block | 8,800 | 1.5 | 0.614 |
| 21-1215-05-US | Manifold Mount Block | 8,800 | 2.0 | 0.614 |
