    NEW! PneumagiQ PQ180T – Extended · 10 kg Payload

    PneumagiQ PQ180T Universal Pneumatic EOAT Interface

    Catalog Section

    The PQ180T is a dual-tool interface with tools positioned in a 180° tandem layout. Built for handling heavier parts where the tool must approach the work area through limited machine access.

    • Dual-tool design with 180° tandem configuration
    • Quick and efficient part changeover
    • Uses just one robot axis for tool changes
    • Designed for handling larger parts
    • 10 kg payload capacity
    • Tool weight: 1046 g

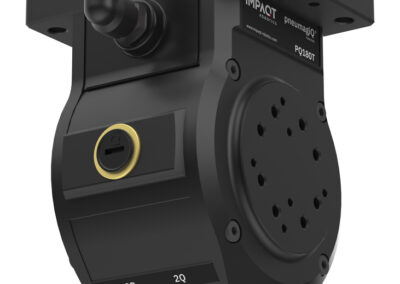

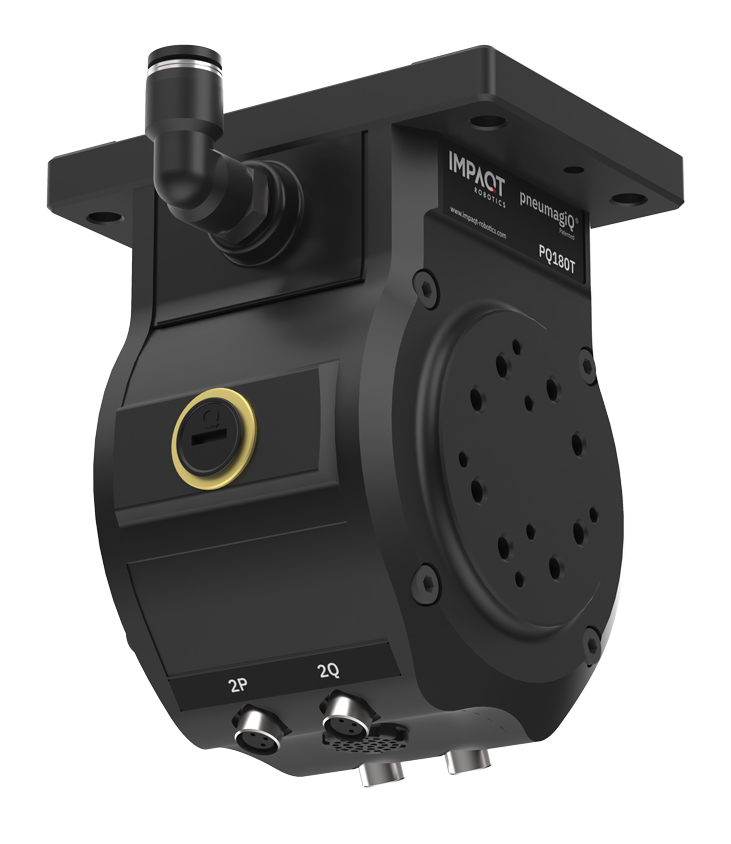

    Vektek-PQ180T-Back-Perspective

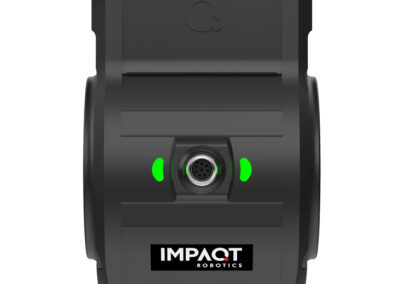

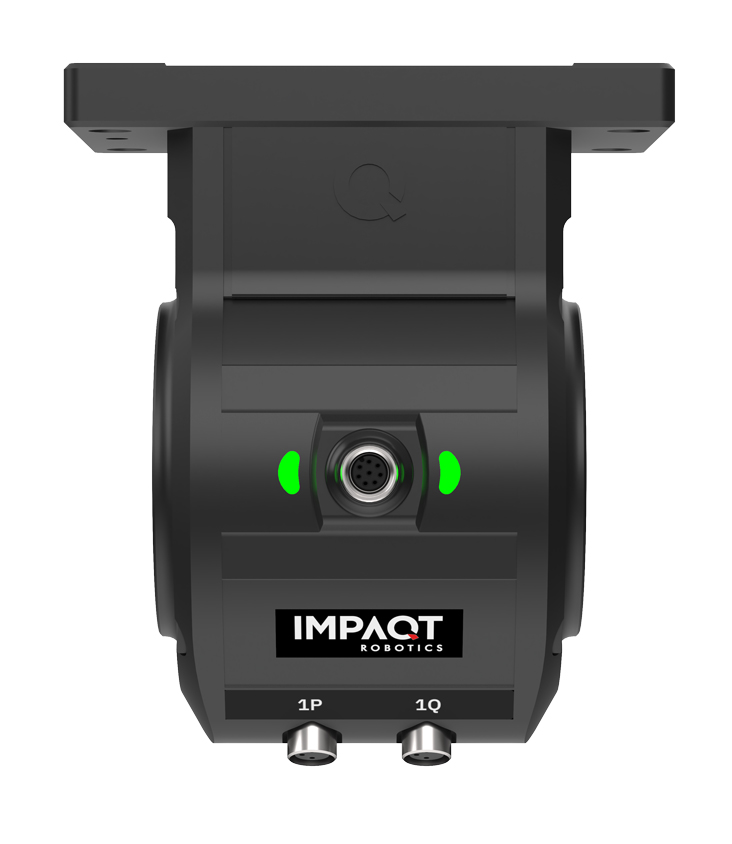

    Vektek-PQ180T-Front-View

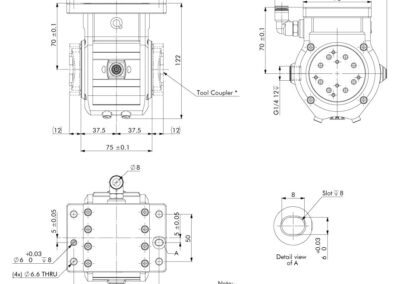

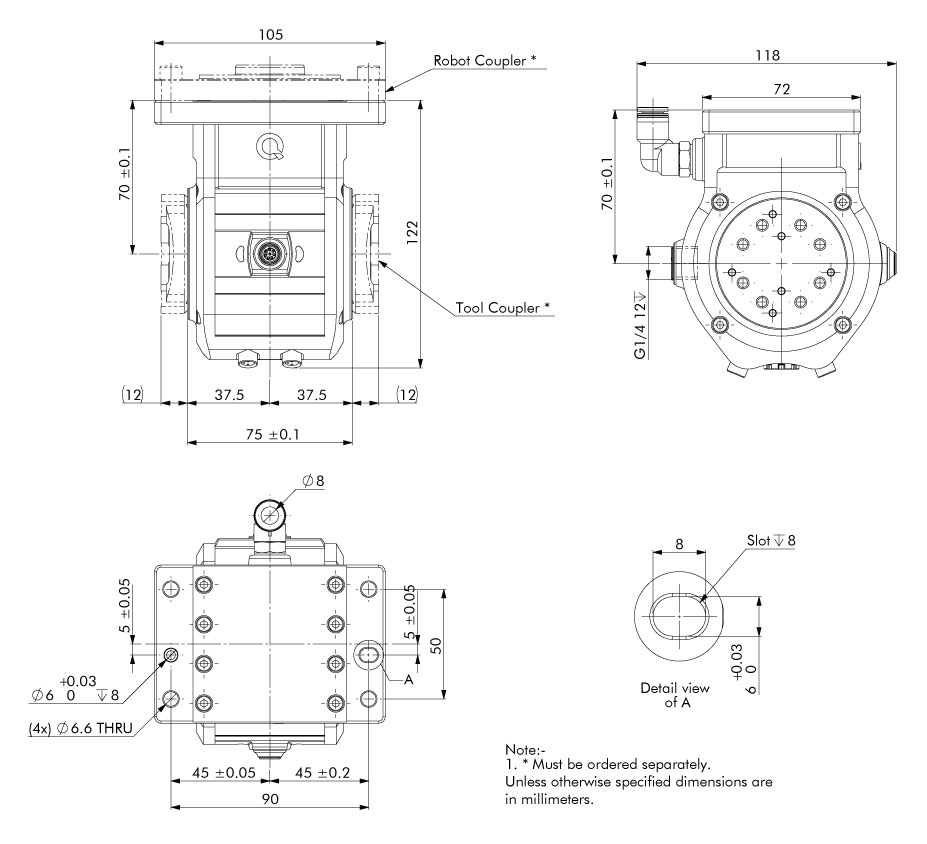

    PQ180T Dimensions

    Unless otherwise specified dimensions are in millimeters.
    *Must be ordered separately.

    PQ180T Dimensions
