NEW! Compact Clamp Arms

Compact Clamps

Catalog Section

Available in both short and long versions.
Made from alloy steel for ultimate durability.
Long Arm available for machining to fit your application.

Note: Please see tables for max operating pressure and force output when making your own arm or using the long arm. Arm may extend out over front of unit even in fully unclamped position.

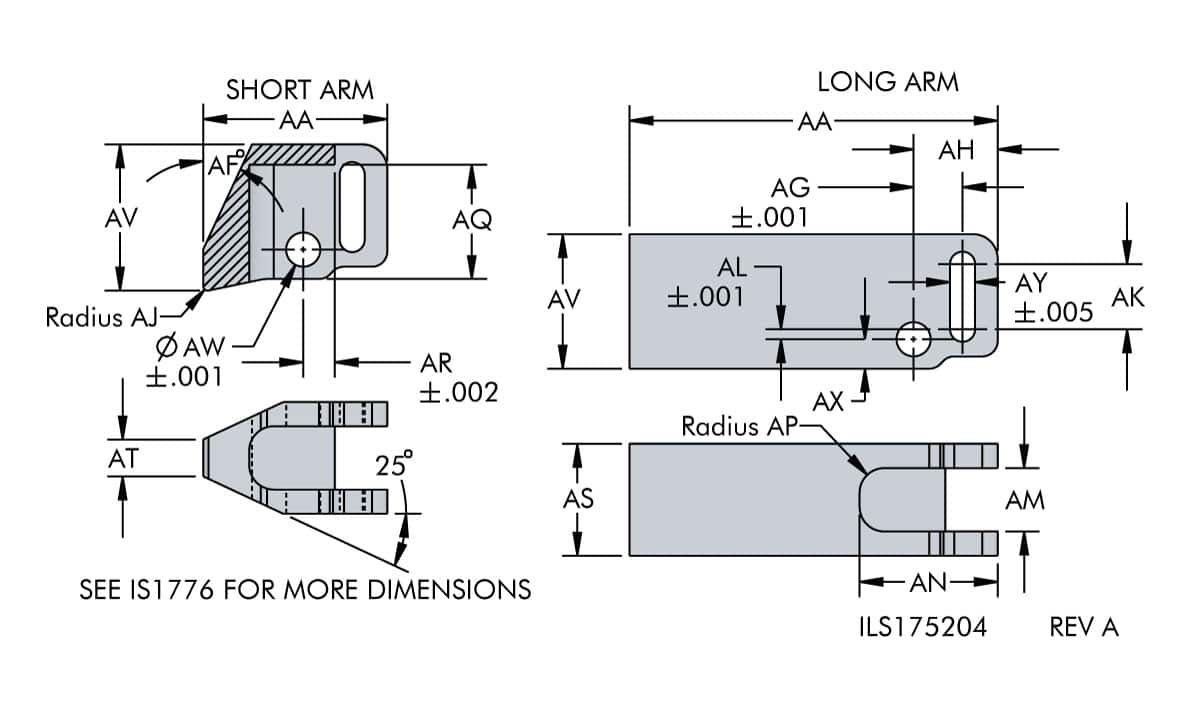

Compact Clamp Arm Dimensions

Model No.	Used With Model No.	A	F	G	H	J	K	L	M	N	P	Q	R	S	T	V	W	X	Y
91-7217-05	17-5217-XX	2.50	N/A	0.310	0.549	N/A	0.364	0.061	0.390	0.900	0.192	0.661	0.193	0.682	N/A	0.797	0.199	0.175	0.163
91-7220-05	17-5220-XX	3.00	N/A	0.399	0.685	N/A	0.529	0.082	0.515	1.125	0.200	0.930	0.257	0.909	N/A	1.094	0.278	0.239	0.204
91-7225-05	17-5225-XX	3.50	N/A	0.499	0.942	N/A	0.596	0.102	0.640	1.500	0.270	1.157	0.321	1.136	N/A	1.390	0.314	0.302	0.257
91-7232-05	17-5232-XX	4.00	N/A	0.598	1.070	N/A	0.758	0.123	0.765	1.700	0.281	1.411	0.385	1.250	N/A	1.714	0.356	0.394	0.283

Model No.	Used With Model No.	A	F	G	H	J	K	L	M	N	P	Q	R	S	T	V	W	X	Y
91-7217-00	17-5217-XX	1.25	30°	0.310	0.549	0.027	0.364	0.061	0.390	0.900	0.192	0.661	0.193	0.682	0.200	0.827	0.199	0.175	0.163
91-7220-00	17-5220-XX	1.50	25°	0.399	0.685	0.037	0.529	0.082	0.515	1.125	0.200	0.930	0.257	0.909	0.300	1.188	0.278	0.239	0.204
91-7225-00	17-5225-XX	2.00	25°	0.499	0.949	0.045	0.596	0.102	0.640	1.500	0.270	1.157	0.321	1.136	0.333	1.472	0.314	0.302	0.257
91-7232-00	17-5232-XX	2.25	25°	0.598	1.070	0.055	0.758	0.123	0.765	1.700	0.281	1.411	0.385	1.250	0.353	1.816	0.356	0.394	0.283
