NEW! Double Acting Compact Clamp with Pneumatic Sensing

Compact Clamps

Engineered to use air pressure to provide clamp position feedback to machine systems. Once clamped, air pressure will build up to the set point.

All of the same features you love about the compact clamp, with the bonus of pneumatic clamp confirmation!

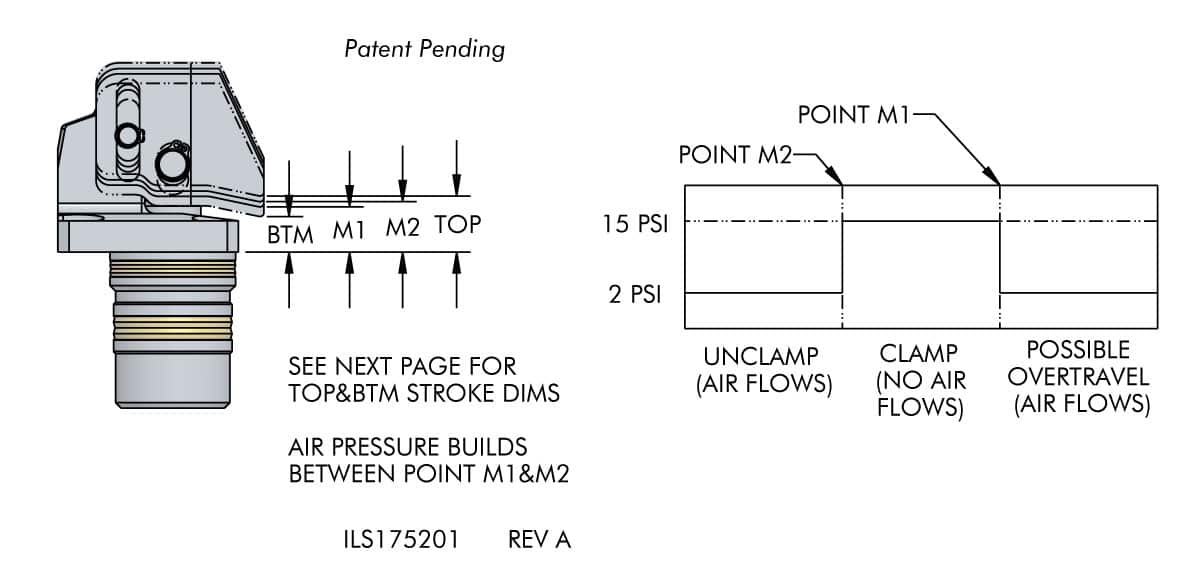

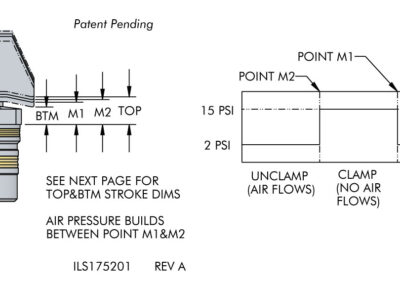

Pneumatic Sensing will show a change in air pressure if the clamp over travels or is not in clamped position.
Use with Vektek’s Air Sensing Control Kit 50-8240-00.

Table Data Coming Soon!

Double Acting Compact Clamp with Pneumatic Sensing

Warning! Never allow arm to contact workpiece or fixture during actuation.
* Cylinder capacities are listed at 5,000 psi maximum operating pressure, with a short arm installed. Minimum operating pressure of 500 psi is required for double acting applications. The clamping force is adjustable by varying the hydraulic system pressure. To determine the approximate clamping force for your application, see IS1776.
** To allow for piece part height variations, it is recommended that the vertical travel be set at about 50% of the vertical stroke.
*** To ensure maximum service life and trouble-free operation, restrict fluid flow to the above flow ratings. If you are unable to measure flow rates, adjust flow so that the clamping action occurs in no less than half a second. If using extended arm either half the above flow rates, or time clamping action to be no less than one second.

Table Data Coming Soon!

* Dimensions only apply to 17-52XX-XX-PP Models.

Model No.	Clamp Capacity (lb.)	Vertical Clamp Stroke (in.)	Piston Area (sq. in.) Retract	Oil Capacity Extend (cu. in.)	Oil Capacity Retract (cu. in.)	Maximum Oil Flow Rate (cu. in./min)
17-5217-00-PP	750	0.19	0.223	0.196	0.131	16
17-5220-00-PP	1,000	0.21	0.293	0.370	0.221	27
17-5225-00-PP	1,750	0.29	0.482	0.747	0.456	55
17-5232-00-PP	2,750	0.30	0.789	1.352	0.859	104

Model No.	B	C	D	E	F	G	H	J	K	L	M	P	Q	R	S	T	V	Y	Z	AB	AC	AD	AE
17-5217-00-PP	1.72	1.22	1.237	0.489	0.209	1.05	0.38	0.30	0.18	3.08	0.190	1.30	0.65	0.525	0.371	1.34	0.496	0.720	0.091	0.701	1.99	16	1.61
17-5220-00-PP	2.18	1.61	1.395	0.530	0.278	1.30	0.50	0.47	0.22	3.80	0.210	1.65	0.83	0.650	0.410	1.61	0.587	0.850	0.121	0.815	3.30	10	2.69
17-5225-00-PP	2.74	2.02	1.568	0.688	0.348	1.62	0.63	0.50	0.27	4.42	0.286	2.04	1.02	0.812	0.576	2.07	0.784	1.076	0.188	1.051	3.82	13	3.19
17-5232-00-PP	3.19	2.42	1.630	0.751	0.417	1.87	0.75	0.60	0.33	5.19	0.300	2.40	1.20	0.934	0.635	2.45	0.901	0.899	0.115	1.180	3.76	16	2.99

Model No.
17-5217-00-PP
17-5220-00-PP
17-5225-00-PP
17-5232-00-PP
