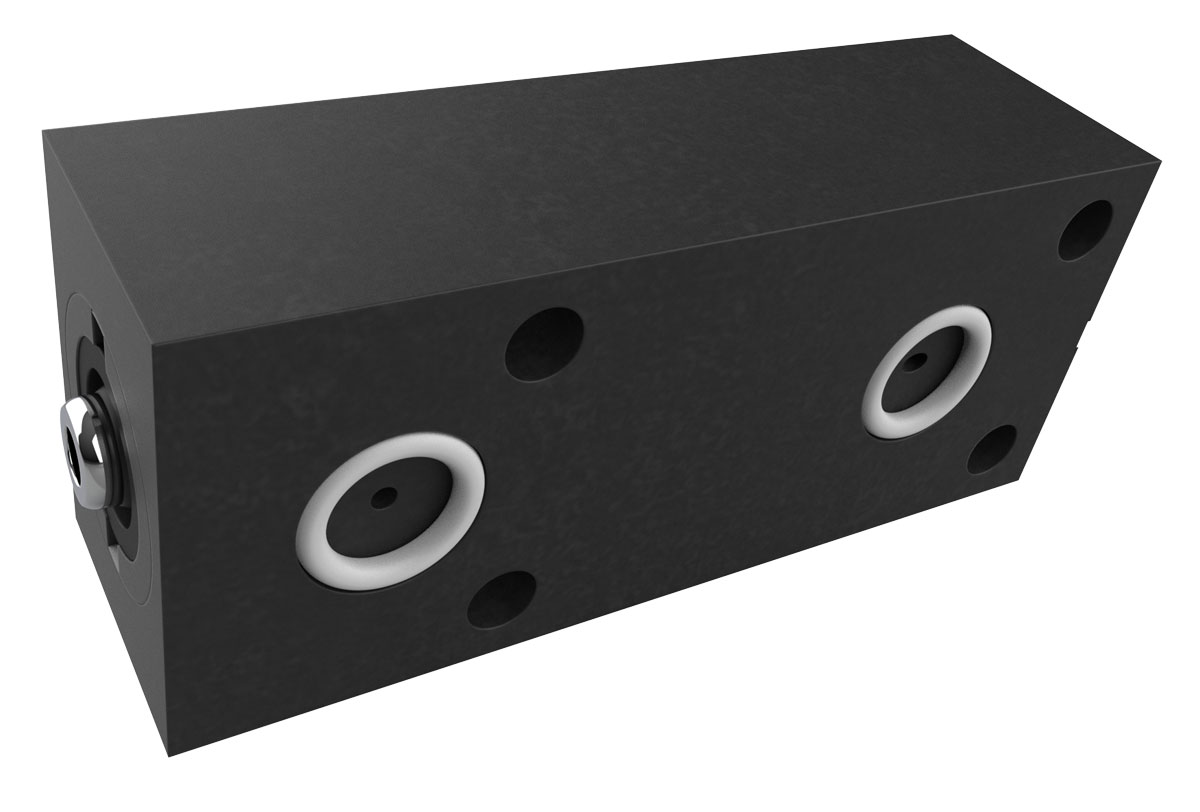

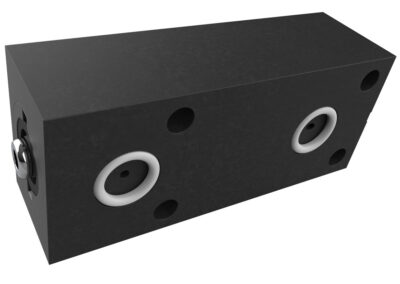

NEW! Block, Manifold Mount

Double Acting

No external ports or external plumbing to collect chips.
Reduced installation labor.
Available in the same sizes and strokes as popular threaded mini cylinders.

** Cylinder capacities are listed at 5,000 psi maximum operating pressure. Cylinder force can be adjusted by varying the hydraulic system pressure. To calculate the approximate output force for an application, multiply the predetermined operating pressure by the effective piston area. The actual output force will vary slightly due to frictional losses within the assembly.

Model No.	Clamp Capacity (lb.) Extend	Clamp Capacity (lb.) Retract	Stroke	Body Size	Minimum Length (in)	Piston Area (sq. in.) Extend	Piston Area (sq. in.) Retract	Oil Capacity Extend (cu. in.)	Oil Capacity Retract (cu. in.)
21-1298-00	550	325	0.25	0.82 X 1.13	1.79	0.115	0.066	0.029	0.017
21-1298-01	550	325	0.75	0.82 X 1.13	2.29	0.115	0.066	0.086	0.050
21-1298-02	550	325	1.25	0.82 X 1.13	2.79	0.115	0.066	0.144	0.083
21-1299-00	980	735	0.37	0.96 X 1.25	2.05	0.196	0.147	0.392	0.294
21-1299-01	980	735	0.75	0.96 X 1.25	2.52	0.196	0.147	0.486	0.365
21-1299-02	980	735	1.25	0.96 X 1.25	3.02	0.196	0.147	0.584	0.438

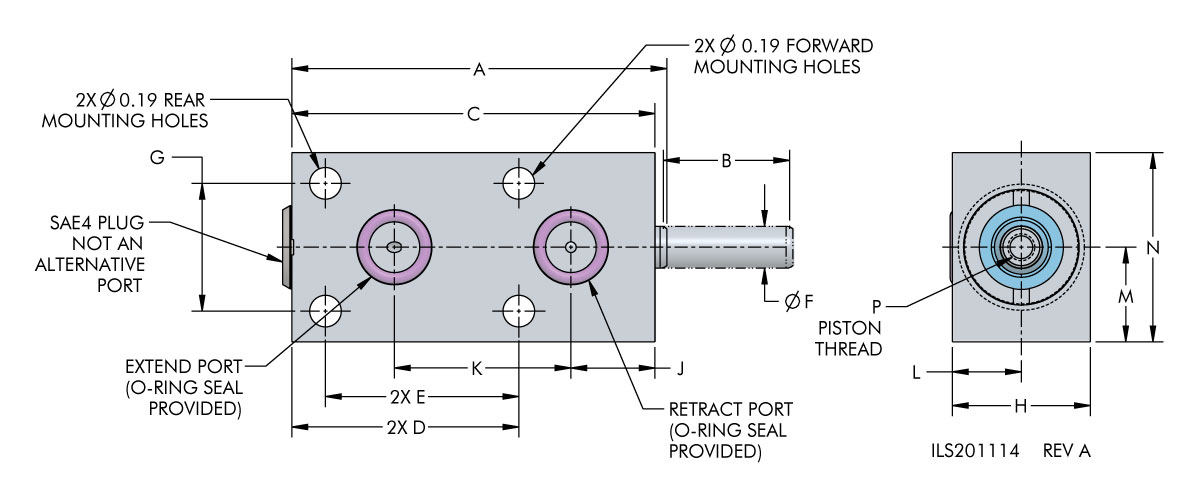

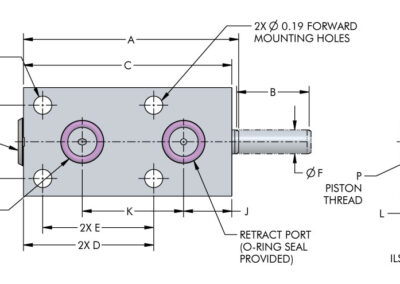

Model No.	Clamp Capacity (lb.)	A	B	C	D	E	F	G	H	J	K	L	M	N	P
21-1298-00	550	1.73	0.25	1.66	0.85	N/A	0.25	0.76	0.82	0.50	0.71	0.40	0.56	1.13	8-32 X 0.25
21-1298-01	550	2.23	0.75	2.16	1.35	1.15	0.25	0.76	0.82	0.50	1.05	0.40	0.56	1.13	8-32 X 0.25
21-1298-02	550	2.73	1.25	2.66	1.85	1.65	0.25	0.76	0.82	0.50	1.55	0.40	0.56	1.13	8-32 X 0.25
21-1299-00	980	1.99	0.38	1.92	0.97	N/A	0.25	0.90	0.96	0.50	0.87	0.48	0.63	1.25	8-32 X 0.25
21-1299-01	980	2.46	0.75	2.39	1.55	1.35	0.25	0.90	0.96	0.50	1.35	0.48	0.63	1.25	8-32 X 0.25
21-1299-02	980	2.96	1.25	2.89	2.05	1.85	0.25	0.90	0.96	0.50	1.85	0.48	0.63	1.25	8-32 X 0.25
