Mounting Block
Hardware

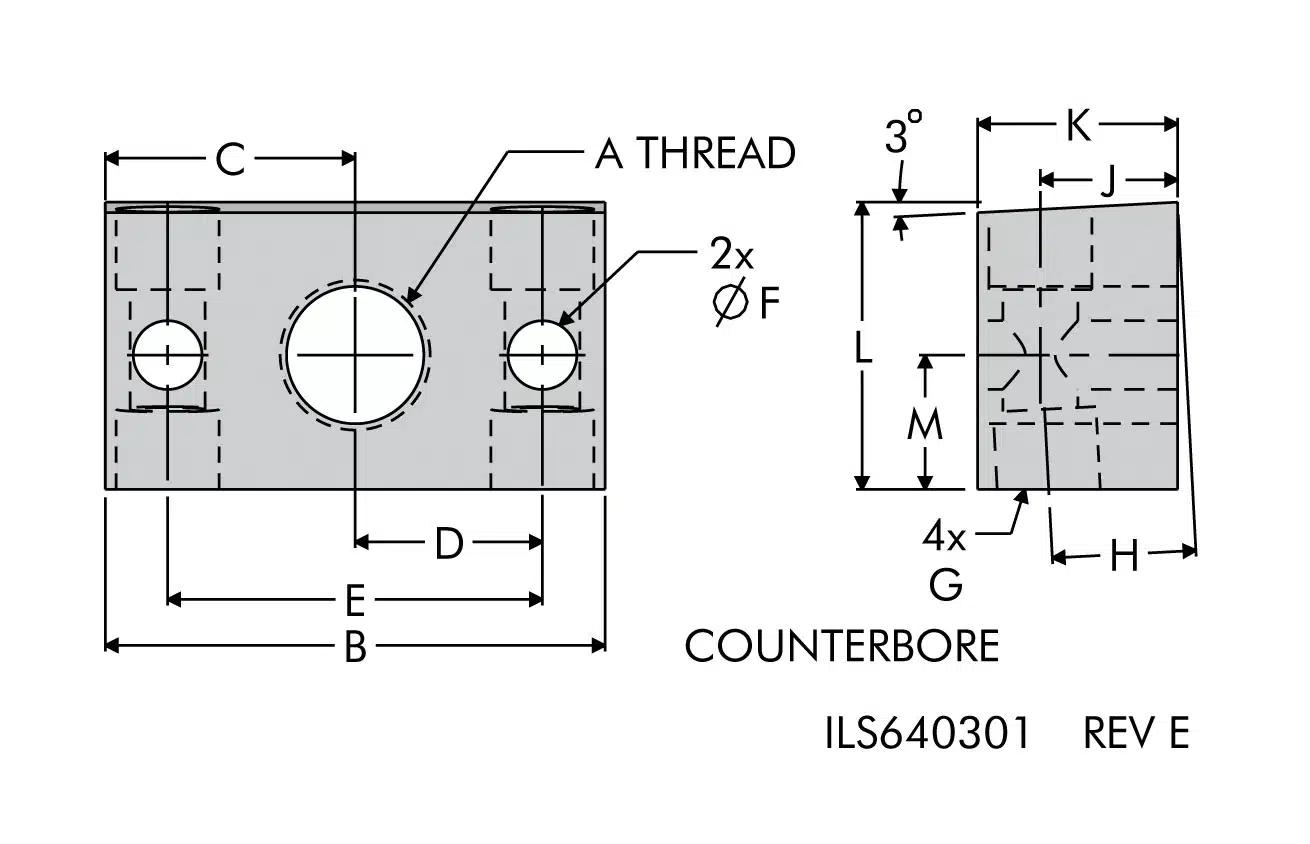

| Model No. | A | B | C | D | E | F | G | H | J | K | L | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 64-0306-00 | 5/8 - 18 | 2.25 | 1.13 | 0.81 | 1.62 | 0.34 | 5/16 SHCS | 0.72 | 0.68 | 1.00 | 1.22 | 0.56 |
| 64-0307-00 | 3/4 - 16 | 2.50 | 1.25 | 0.94 | 1.88 | 0.34 | 5/16 SHCS | 0.72 | 0.68 | 1.00 | 1.44 | 0.67 |
