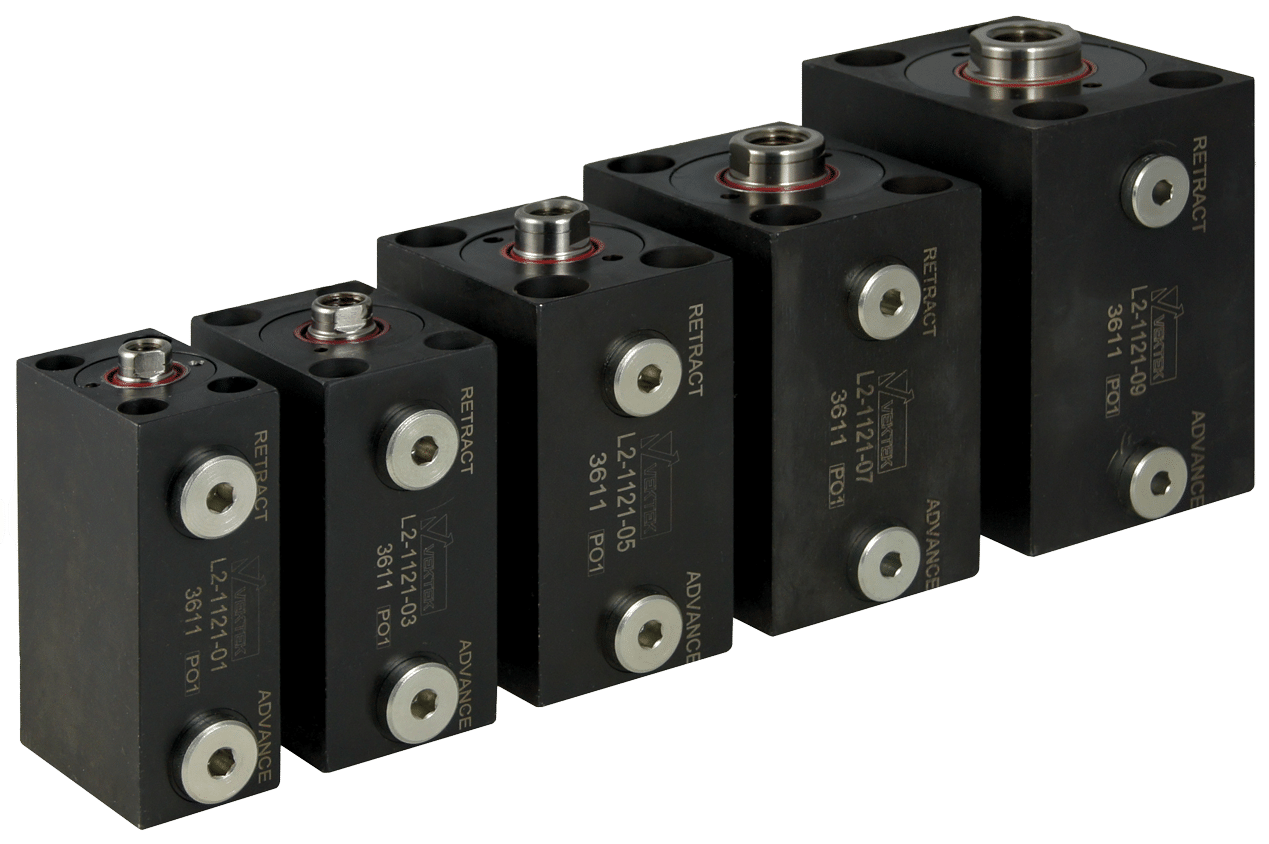

Low Pressure Cylinders

Cylinders are the most common and least costly form of hydraulic clamping available. They can be sized adequately to allow you to clamp across or against cutter forces. (We always recommend that cutter forces be transmitted into fixed stops.)

Clamping cylinders typically use a one-piece piston and a one-piece body. The grade of materials, seals and finishes are higher due to the long life and frequency of use required. We strive to produce the finest quality cylinders for the specialty clamping industry.

Clamping cylinders are intended for pushing up against a part and holding it in place. They are not intended for use in power cylinder applications where punching, bending or forming are performed. The special seals used in clamps are not designed to lubricate well in power applications, nor are the cylinders cushioned against “break through” forces.

• Vektek cylinders are designed for long life in high production applications. Don’t gamble with “cheap” cylinders, which wear out prematurely.
• BHC™ (Black Hard Coating) on the cylinder bodies helps prevent scoring and scratching. After years of use, cylinder removal is easier because BHC™ corrosion resistance is better than black oxide or chrome plating.
• Proprietary seal design reduces leakage and extends seal life for longer.
• Chromed and hardened alloy steel pistons won’t “mushroom” even when used without grippers. Lasting, more dependable cylinders.
• Special wipers keep chips and contaminants out.
