350 Bar Link Clamps

Force Tables and Graphs

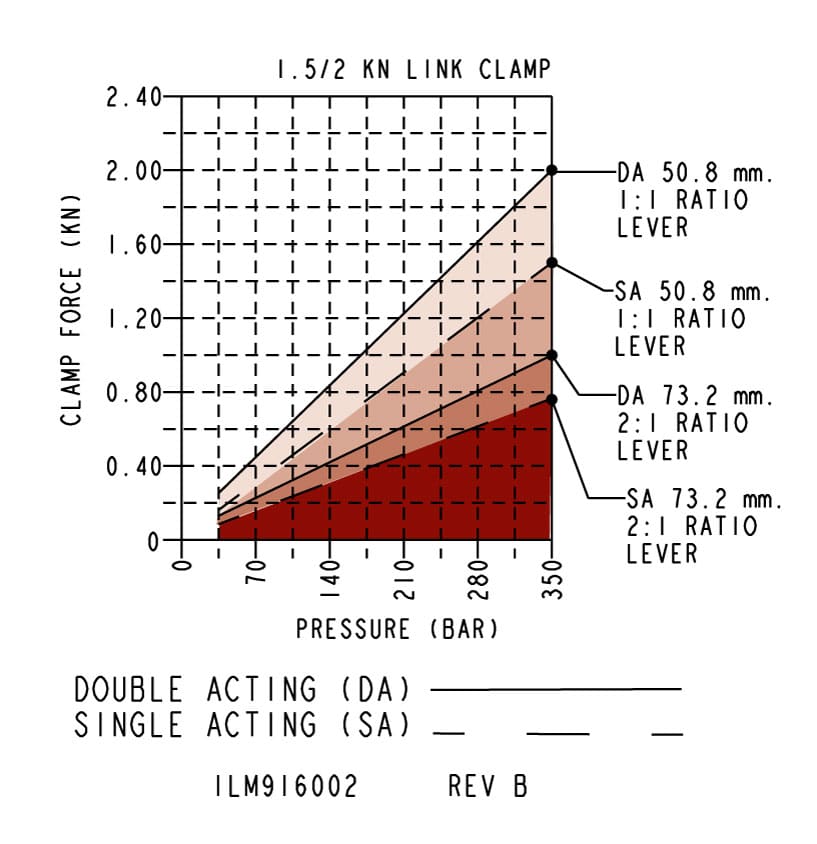

1.5/2 kN
Link Clamp
1.5-by-2-kN-Link-Clamps

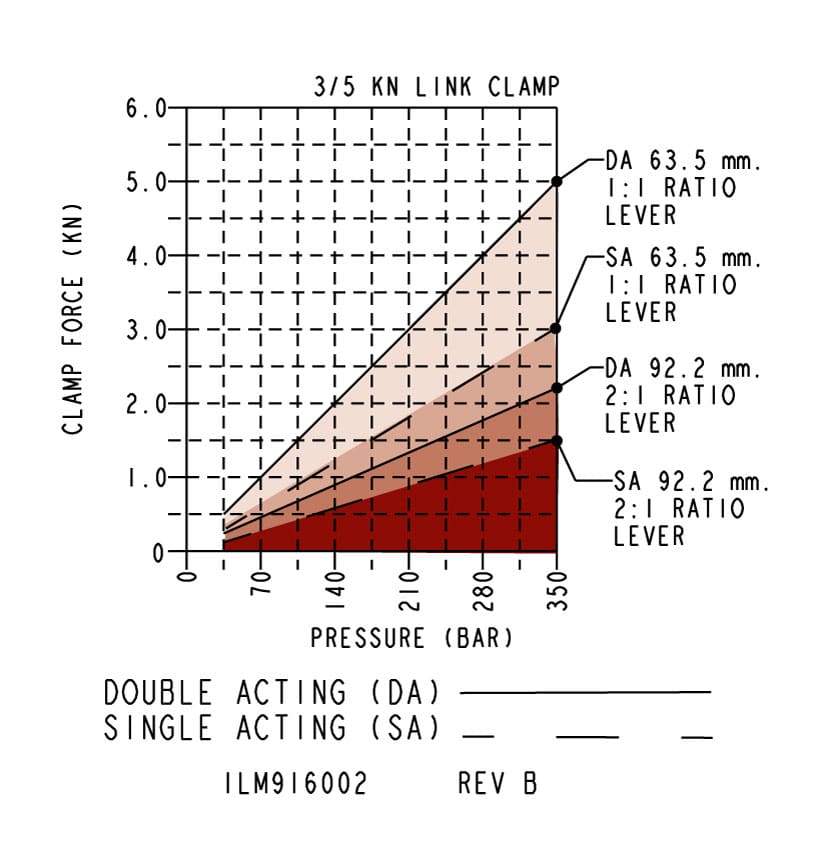

3/5 kN
Link Clamp
3-by-5-kN-Link-Clamps

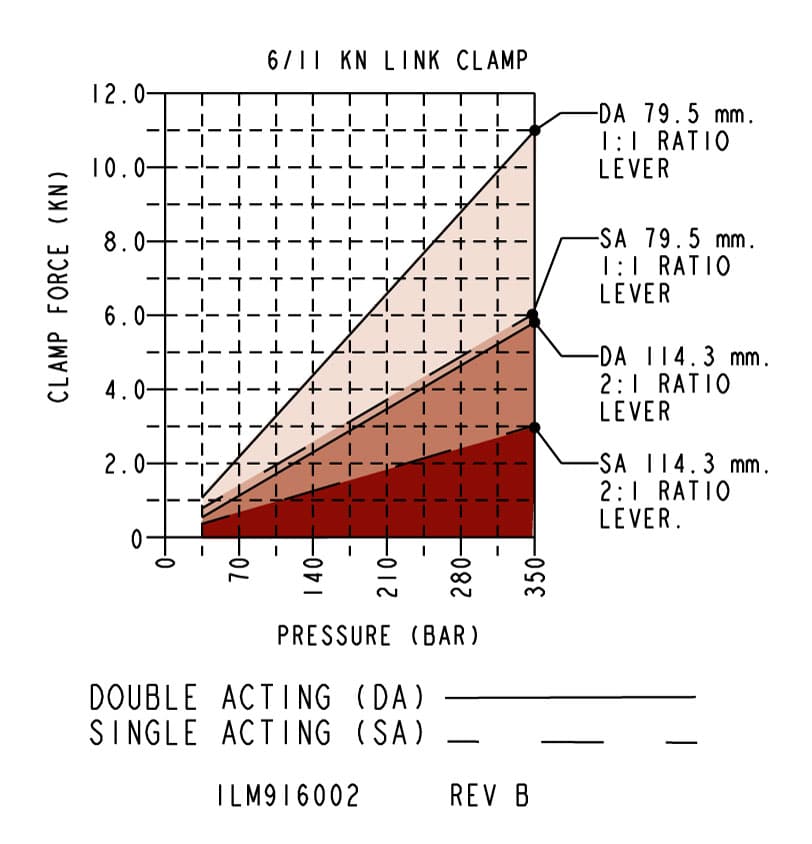

6/11 kN
Link Clamp
6-by-11-kN-Link-Clamps

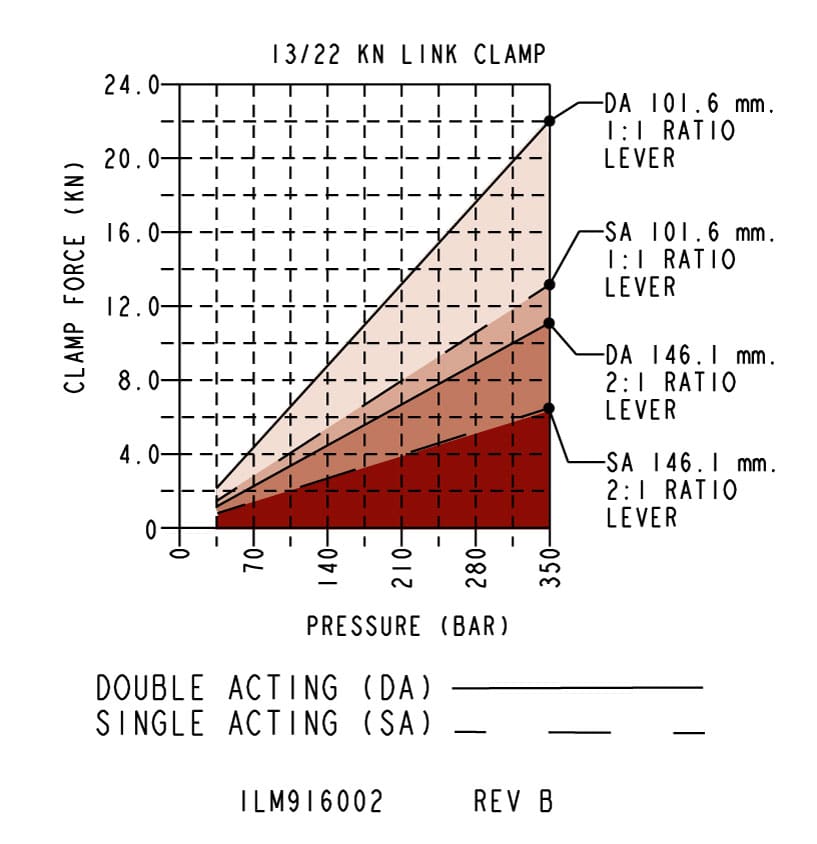

13/22 kN
Link Clamp
13-by-22-kN-Link-Clamps

NOTE: Modifications to levers that result in clamp ratios below 1:1 are not in the safe operating zone for the corresponding link clamp and could result in premature failure.
