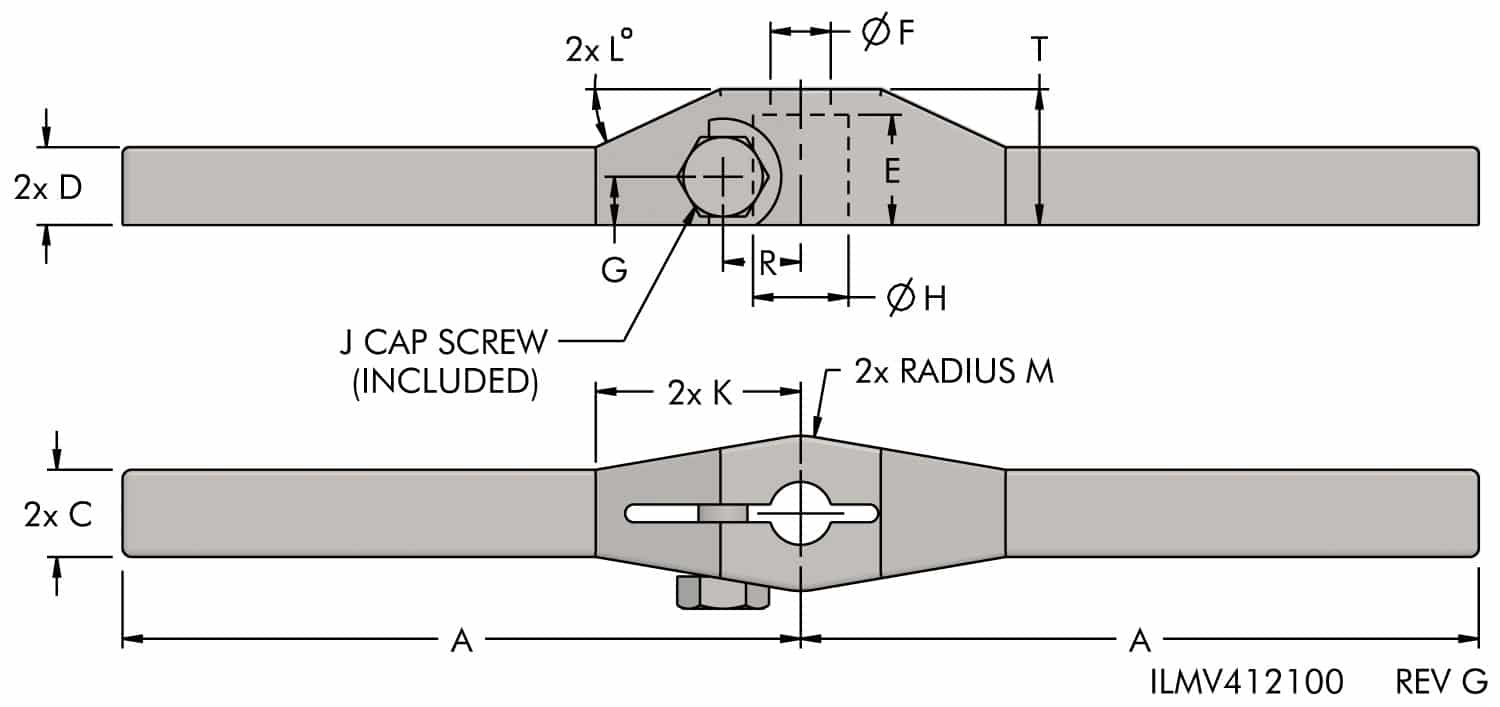

Double Ended Arms
Metric Swing Clamp Arms
For arm limits, see the Swing Clamp Arms Learn More Page.
| Model No. | Clamp Capacity (kN) | A | B | C | D | E | F | G | H | J | K | L | M | R | T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44-1211-00 | 2 | 70 | N/A | 10.5 | 8.1 | 12.5 | 7 | 7 | 11.13 - 11.18 | M6 X 1 | 27.2 | 22 | 9.5 | 9.5 | 15.3 |
