NEW! Double Acting Compact Clamp
Compact Clamps
- Clamp design features a linear rotary actuation that moves the arm out of the way for loading and unloading plus a vertical clamping stroke, allowing for part height deviations.
- Designed to work at 5000 PSI.
- Maximum clamping force – Minimal footprint.

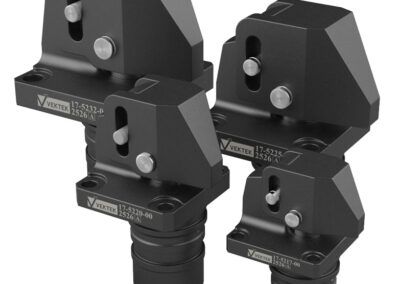

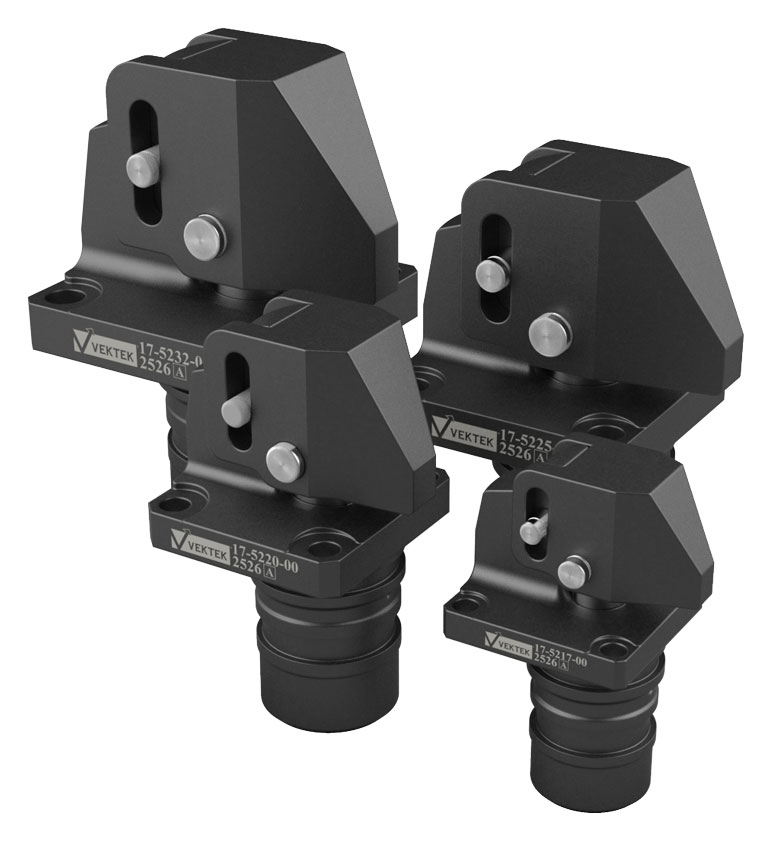

- Available in 4 sizes.

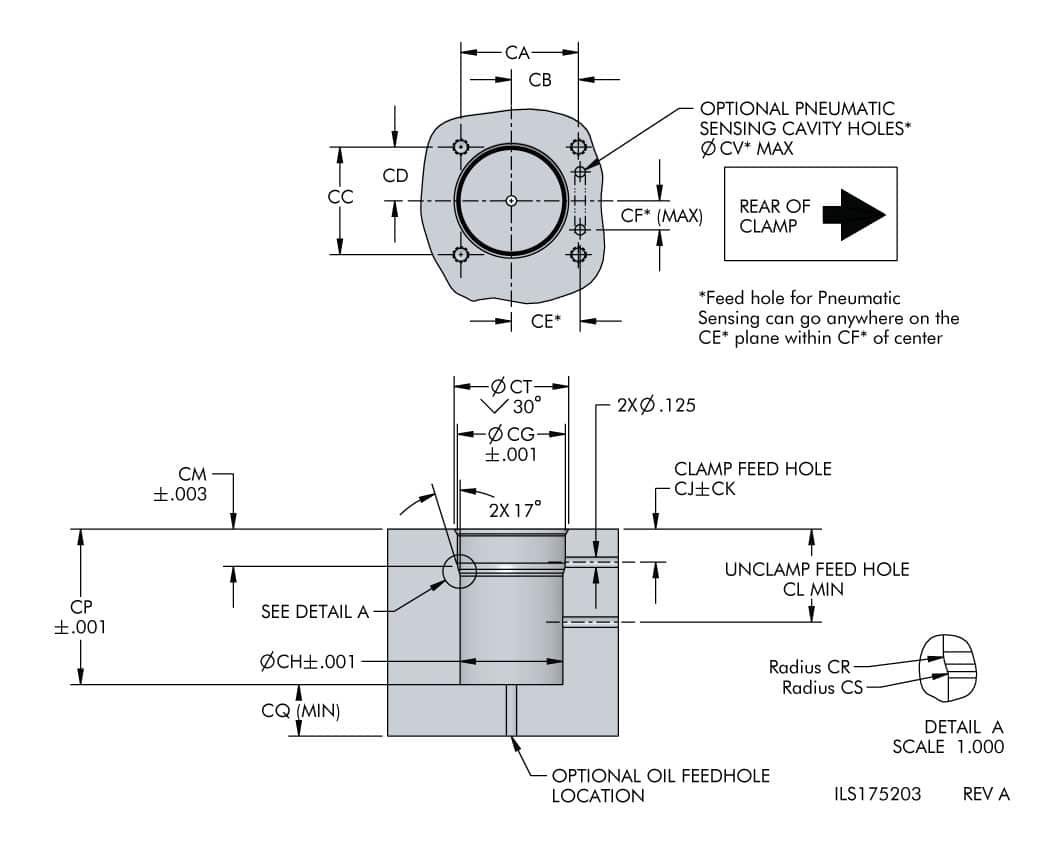

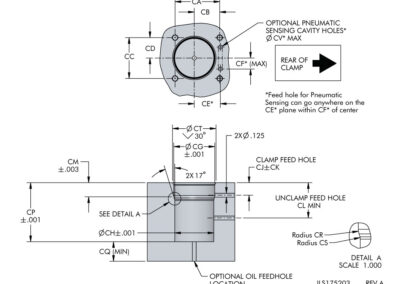

- Cartridge mount configuration allows for 360° oil feed capability simplifying oil passages.

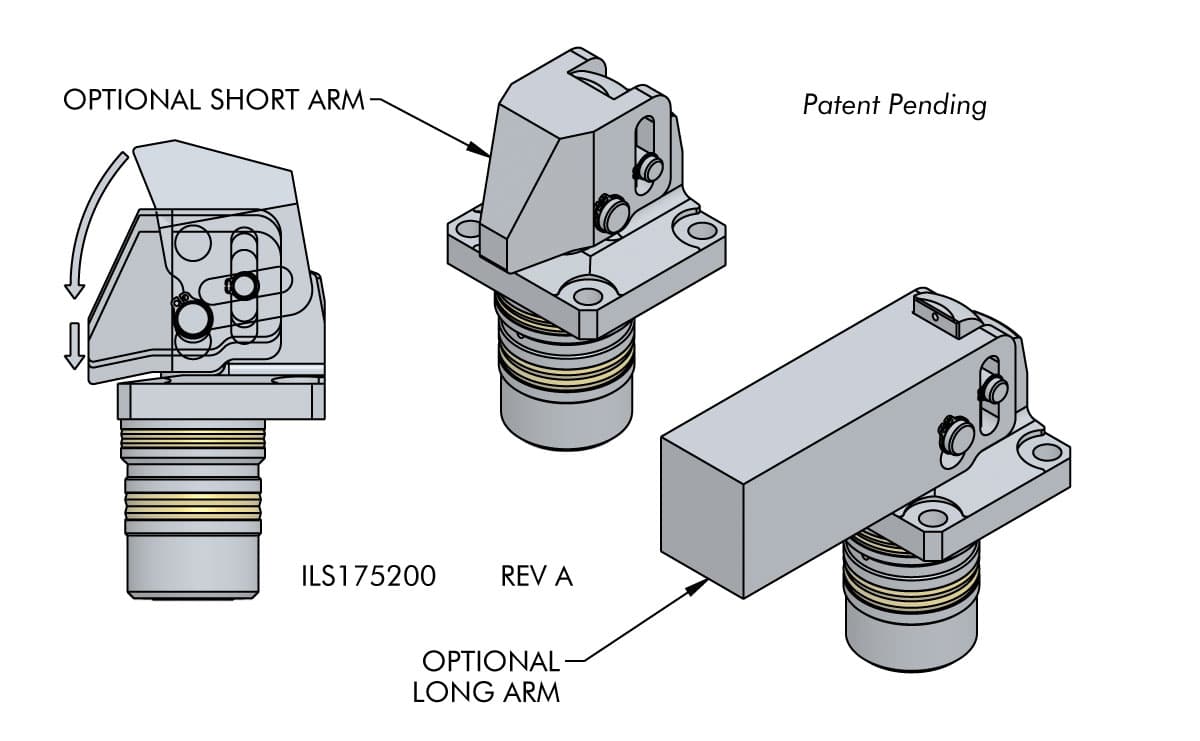

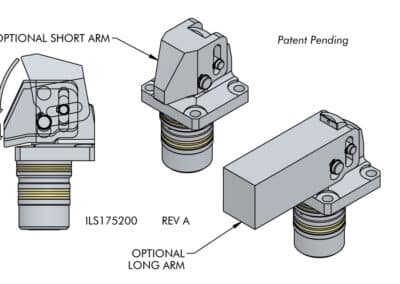

- Available with either short or long arms. (See here)
- Arm design deflects chips and protects cylinder rod from contamination while clamped.
Warning! Never allow arm to contact workpiece or fixture during actuation.
Table Data Coming Soon!
* Cylinder capacities are listed at 5,000 psi maximum operating pressure, with a short arm installed. Minimum operating pressure of 500 psi is required for double acting applications. The clamping force is adjustable by varying the hydraulic system pressure to determine the approximate clamping force for your application, see IS1776.
** To allow for piece part height variations, it is recommended that the vertical travel be set at about 50% of the vertical stroke.
*** To ensure maximum service life and trouble-free operation, restrict fluid flow to the above flow ratings. If you are unable to measure flow rates, adjust flow so that the clamping action occurs in no less than half a second. If using extended arm either quarter the above flow rates, or time clamping action to be no less than two seconds.
Need a drop in replacement for a non-Vektek product?
We got you covered! Call customer support today!
Table Data Coming Soon!
* Dimensions only apply to 17-52XX-XX-PP Models.
| Model No. | Clamp Capacity (lb.) | Vertical Clamp Stroke (in.) | Piston Area (sq. in.) Retract | Oil Capacity Extend (cu. in.) | Oil Capacity Retract (cu. in.) | Maximum Oil Flow Rate (cu. in./min) |
|---|---|---|---|---|---|---|
| 17-5217-00 | 750 | 0.19 | 0.223 | 0.196 | 0.131 | 16 |
| 17-5220-00 | 1,000 | 0.21 | 0.293 | 0.370 | 0.221 | 27 |
| 17-5225-00 | 1,750 | 0.29 | 0.482 | 0.747 | 0.456 | 55 |
| 17-5232-00 | 2,750 | 0.30 | 0.789 | 1.352 | 0.859 | 104 |

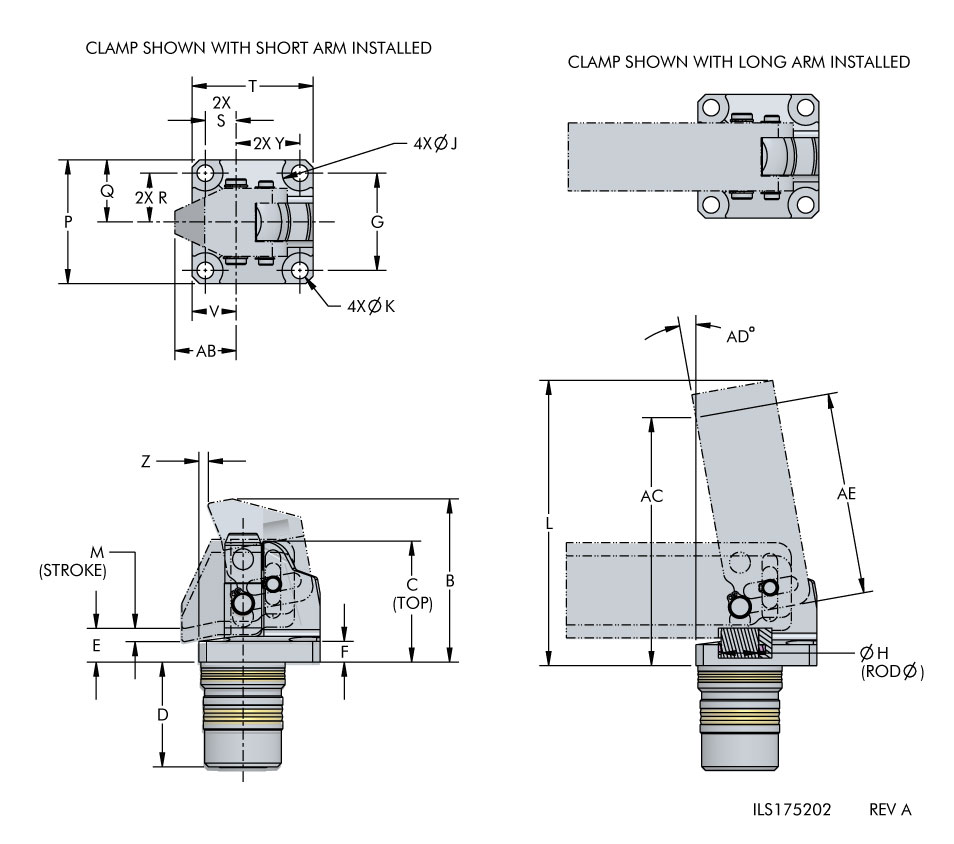

| Model No. | B | C | D | E | F | G | H | J | K | L | M | P | Q | R | S | T | V | Y | Z | AB | AC | AD | AE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 17-5217-00 | 1.72 | 1.22 | 1.237 | 0.489 | 0.209 | 1.05 | 0.38 | 0.30 | 0.18 | 3.08 | 0.190 | 1.30 | 0.65 | 0.525 | 0.371 | 1.34 | 0.496 | 0.720 | 0.091 | 0.701 | 1.99 | 16 | 1.61 |
| 17-5220-00 | 2.18 | 1.61 | 1.395 | 0.530 | 0.278 | 1.30 | 0.50 | 0.47 | 0.22 | 3.80 | 0.210 | 1.65 | 0.83 | 0.650 | 0.410 | 1.61 | 0.587 | 0.850 | 0.121 | 0.815 | 3.30 | 10 | 2.69 |
| 17-5225-00 | 2.74 | 2.02 | 1.568 | 0.688 | 0.348 | 1.62 | 0.63 | 0.50 | 0.27 | 4.42 | 0.286 | 2.04 | 1.02 | 0.812 | 0.576 | 2.07 | 0.784 | 1.076 | 0.188 | 1.051 | 3.82 | 13 | 3.19 |
| 17-5232-00 | 3.19 | 2.42 | 1.630 | 0.751 | 0.417 | 1.87 | 0.75 | 0.60 | 0.33 | 5.19 | 0.300 | 2.40 | 1.20 | 0.934 | 0.635 | 2.45 | 0.901 | 0.899 | 0.115 | 1.180 | 3.76 | 16 | 2.99 |
