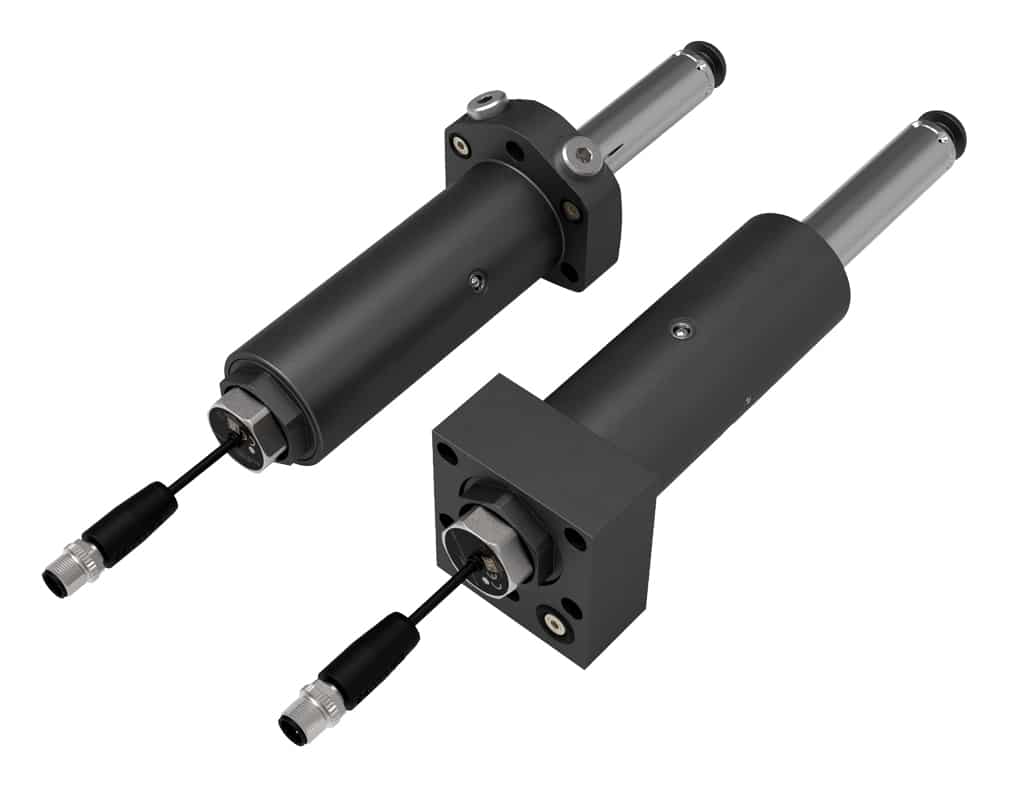

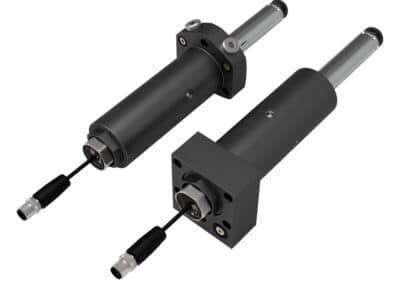

NEW! Ultrasonic Position Sensing Longstroke TuffCam Swing Clamps – METRIC
Ultrasonic Position Sensing Clamps
- Available as TuffCam Swing Clamp with capacities of 4.9 kN and 11.6 kN. Including longstroke clamps.
- Ultrasonic Position Sensing provides on-demand position feedback with high accuracy and repeatability.
- Ultrasonic Clamps can be used with the Data Link System (DLS) for easy integration.

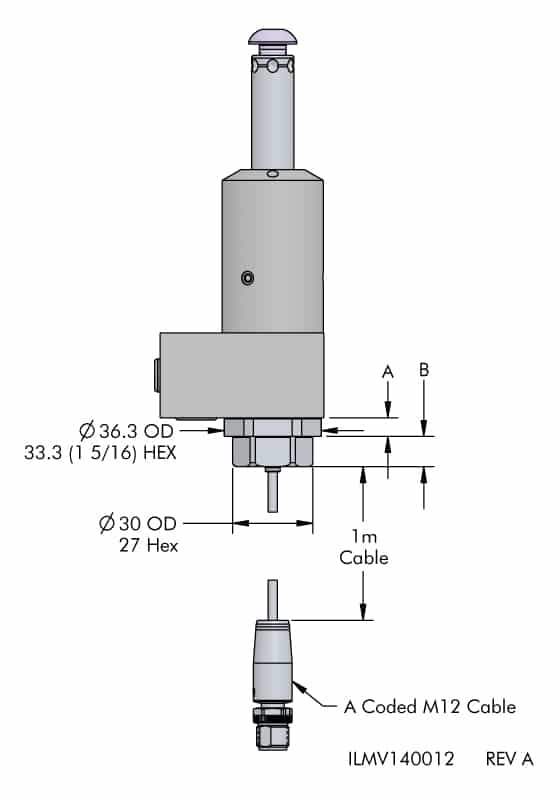

- All dimensions between standard TuffCam and Ultrasonic TuffCam Clamps are the same except for those noted in the table and drawing.
- Click Here for more information on ultrasonic clamps.
| Model No. | Mounting Style | Swing Direction | Clamp Capacity (kN) | A | B |
|---|---|---|---|---|---|
| 41-4205-23-US | Bottom Flange | Right | 4.9 | 6.9 mm | 11.3 mm |
| 41-4205-24-US | Bottom Flange | Left | 4.9 | 6.9 mm | 11.3 mm |
| 41-4211-23-US | Bottom Flange | Right | 11.6 | 6.3 mm | 9.2 mm |
| 41-4211-24-US | Bottom Flange | Left | 11.6 | 6.3 mm | 9.2 mm |
| Model No. | Mounting Style | Swing Direction | Clamp Capacity (kN) | A | B |
|---|---|---|---|---|---|
| 41-4605-23-US | Top Flange | Right | 4.9 | 8.3 mm | 11.3 mm |
| 41-4605-24-US | Top Flange | Left | 4.9 | 8.3 mm | 11.3 mm |
| 41-4611-23-US | Top Flange | Right | 11.6 | 7.7 mm | 9.2 mm |
| 41-4611-24-US | Top Flange | Left | 11.6 | 7.7 mm | 9.2 mm |
