NEW! Ultrasonic Position Sensing TuffLink Link Clamps – METRIC

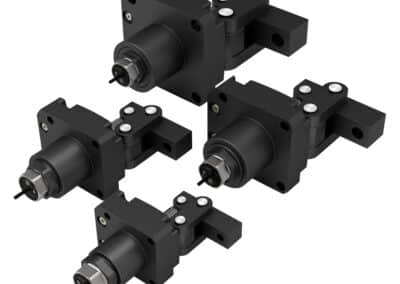

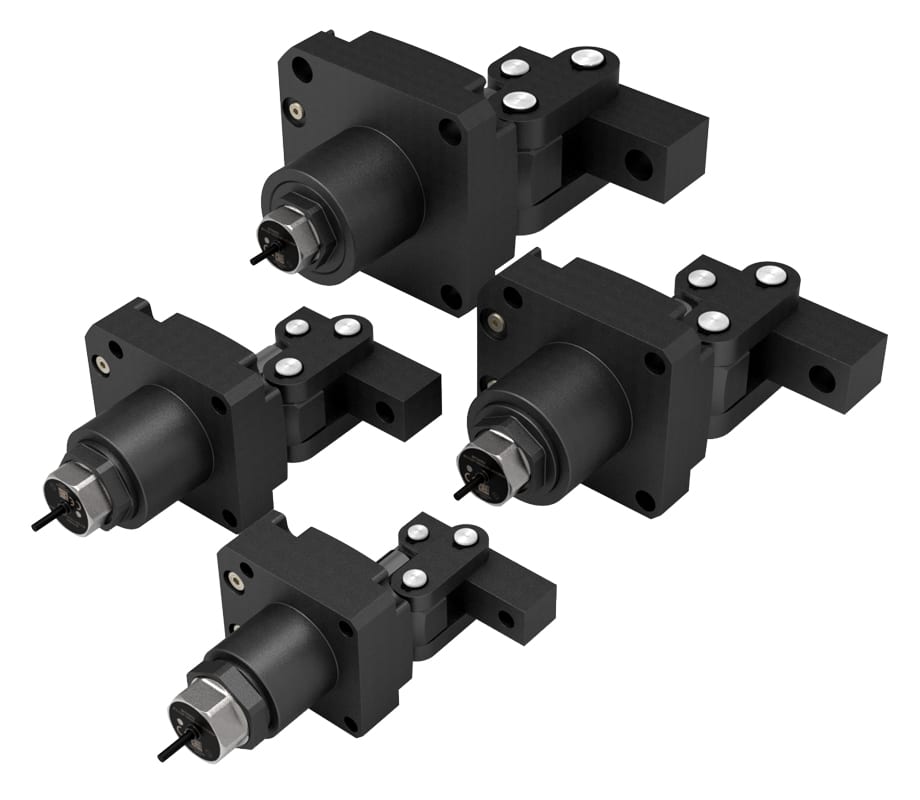

Ultrasonic Position Sensing Clamps
- Available as TuffLink Link Clamp with capacities of 6.22 kN, 10.4 kN ,15.9 kN, and 22.3 kN.
- Ultrasonic Position Sensing provides on-demand position feedback with high accuracy and repeatability.
- Ultrasonic Clamps can be used with the Data Link System (DLS) for easy integration.

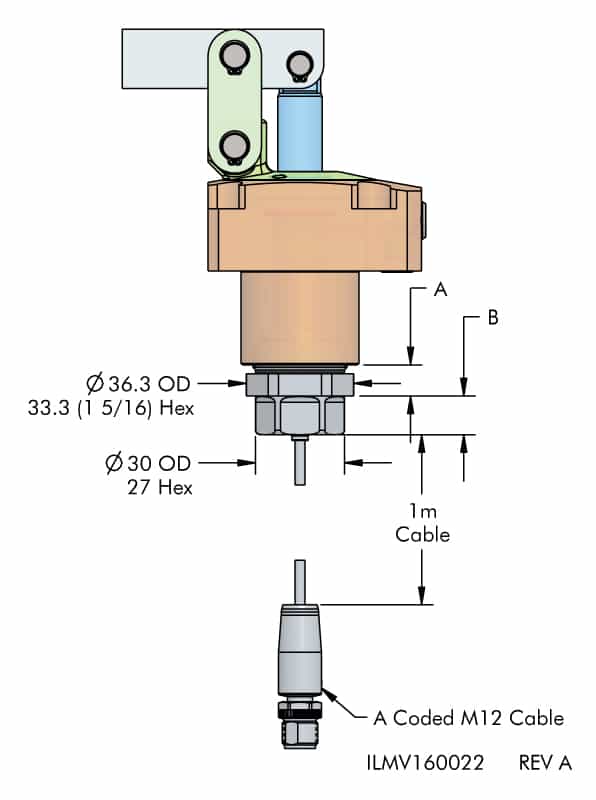

- All dimensions between standard TuffLink and Ultrasonic TuffLink Clamps are the same except for those noted in the table and drawing.
- Click Here for more information on ultrasonic clamps.
| Model No. | Clamp Capacity (kN) | A | B |
|---|---|---|---|
| 41-6218-00-US | 6.22 | 10.5 mm | 13.1 mm |
| 41-6222-00-US | 10.4 | 10.3 mm | 11.3 mm |
| 41-6228-00-US | 15.9 | 10.5 mm | 11.8 mm |
| 41-6232-00-US | 22.3 | 7.4 mm | 11.8 mm |
