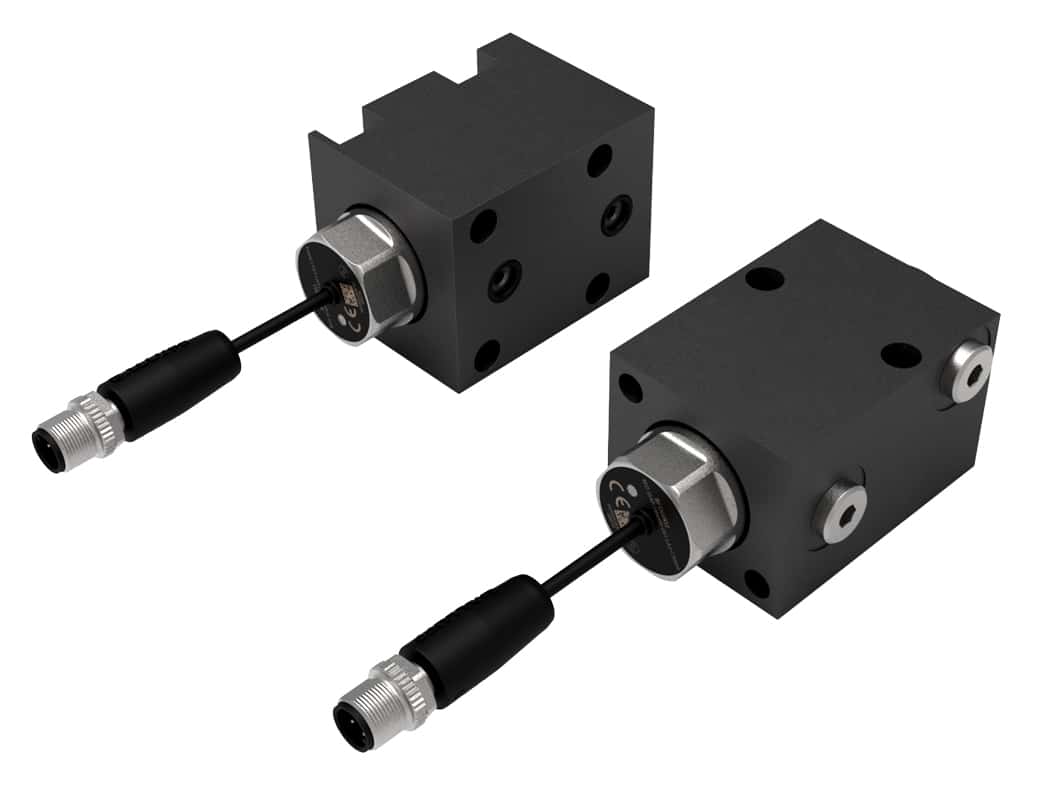

NEW! Ultrasonic Position Sensing Block Body Cylinders – METRIC
METRIC – Ultrasonic Position Sensing Clamps
- Available as Block Body or Manifold Mount Block Body with capacities of 17.8 kN and 39.9 kN. Stroke limited to 51 mm or smaller.
- Ultrasonic Position Sensing provides live position feedback with high accuracy and repeatability.
- Ultrasonic Clamps can be used with the Data Link System (DLS) for easy integration.

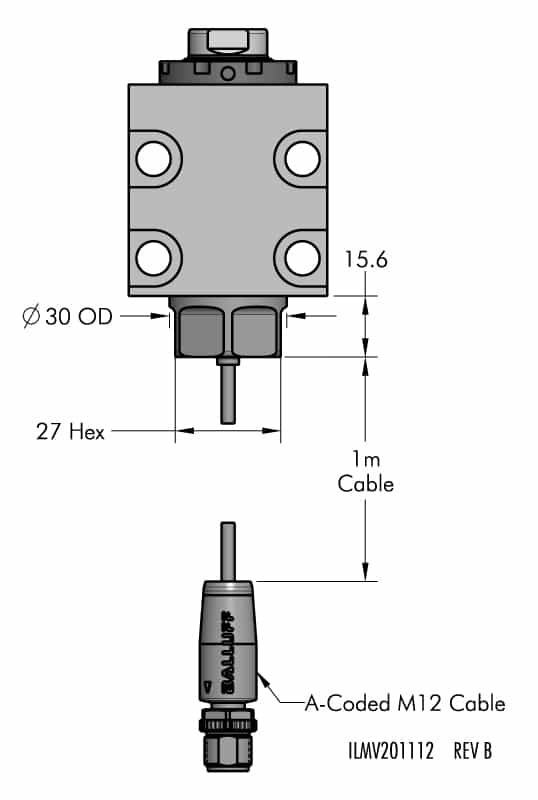

- All dimensions between standard Block Body Cylinders and Ultrasonic Block Body Cylinders are the same except for those noted in the table and drawing.
- Click Here for more information on ultrasonic clamps.
| Model No. | Clamp Capacity (kN) | Stroke | Thread |
|---|---|---|---|
| 42-1120-02-US | 17.8 | 12.5 | 5/16-18 UNC X 11.2 |
| 42-1120-03-US | 17.8 | 25.5 | 5/16-18 UNC X 11.2 |
| 42-1120-04-US | 17.8 | 51 | 5/16-18 UNC X 11.2 |
| 42-1120-05-US | 39.9 | 12.5 | 1/2-13 UNC X 13 |
| 42-1120-06-US | 39.9 | 25.5 | 1/2-13 UNC X 13 |
| 42-1120-07-US | 39.9 | 51 | 1/2-13 UNC X 13 |
| 42-1120-08-US | 17.8 | 38 | 5/16-18 UNC X 11.2 |
| 42-1120-09-US | 39.9 | 38 | 1/2-13 UNC X 13 |
