Centering Clamp, Large Bore, 3 Point Contact
Special Use Clamps
Double Acting
- Bore clamp with 3 points used for concentric positioning the ID of a bore, internal clamping expands radially to center the bore. Great for engine blocks!
- Capable of moving a part approximately 0.100” after the part is placed over the center mandrel.
- The clamping points retract for easy loading, then expand hydraulically to center the bore.
- Positional repeatability of ±.001”.
- May be manifold mounted as shown or purchase the optional Mounting Plate for bolt-down or access to porting when mounting.
- Fits bore sizes from 2.13-5.12”.
- Normally used with other clamps to secure the part. Requires the use of fixed stops and or additional clamps to resist direct rotational torque.

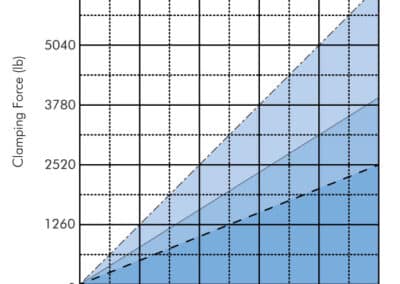

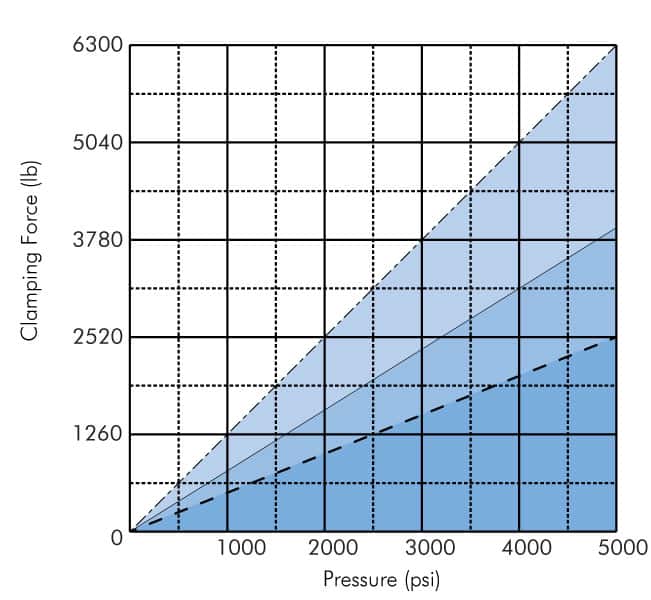

| Model No. | Clamp Capacity (lb.) | Clamping Points | Clamping Range (in) | Repeatability | Oil Capacity Extend (cu. in.) | Oil Capacity Retract (cu. in.) | Weight | Adapter No. |
|---|---|---|---|---|---|---|---|---|
| 15-8219-01 | 2520 | 3 | 2.13 - 2.44 | 0.001 | 0.12 | 0.08 | 3.87 | 15-8200-06 |
| 15-8221-01 | 2520 | 3 | 2.40 - 2.72 | 0.001 | 0.12 | 0.08 | 3.87 | 15-8200-06 |
| 15-8224-01 | 2520 | 3 | 2.68 - 2.99 | 0.001 | 0.12 | 0.08 | 3.87 | 15-8200-06 |
| 15-8226-01 | 3930 | 3 | 2.99 - 3.31 | 0.001 | 0.21 | 0.12 | 3.87 | 15-8200-08 |
| 15-8229-01 | 3930 | 3 | 3.27 - 3.58 | 0.001 | 0.21 | 0.12 | 3.87 | 15-8200-08 |
| 15-8231-01 | 3930 | 3 | 3.54 - 3.85 | 0.001 | 0.21 | 0.12 | 3.87 | 15-8200-08 |
| 15-8234-01 | 6300 | 3 | 3.86 - 4.29 | 0.001 | 0.47 | 0.23 | 7.57 | 15-8200-10 |
| 15-8237-01 | 6300 | 3 | 4.29 - 4.72 | 0.001 | 0.47 | 0.23 | 7.94 | 15-8200-10 |
| 15-8241-01 | 6300 | 3 | 4.69 - 5.12 | 0.001 | 0.47 | 0.23 | 8.32 | 15-8200-10 |

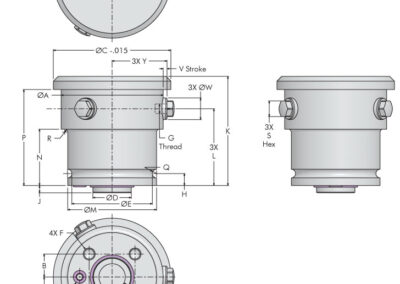

| Model No. | A | B | C | D | E | F | G | H | J | K | L | M | N | P | Q | R | S | T | V | W | Y |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15-8219-01 | 1.77 | 0.445 | 2.122 | 0.6297 MAX / 0.6293 MIN | 1.575 | M6 - 1.0 X 0.47 | M6 | 0.315 | 0.236 | 2.56 | 1.77 | 1.77 | N/A | 2.24 | 0.10 | N/A | 0.39 | 0.661 | 0.16 | 0.47 | 0.90 |
| 15-8221-01 | 1.77 | 0.445 | 2.398 | 0.6297 MAX / 0.6293 MIN | 1.575 | M6 - 1.0 X 0.47 | M6 | 0.315 | 0.236 | 2.56 | 1.77 | 1.77 | N/A | 2.24 | 0.10 | N/A | 0.39 | 0.661 | 0.16 | 0.47 | 0.90 |
| 15-8224-01 | 1.77 | 0.445 | 2.673 | 0.6297 MAX / 0.6293 MIN | 1.575 | M6 - 1.0 X 0.47 | M6 | 0.315 | 0.236 | 2.56 | 1.77 | 1.77 | N/A | 2.24 | 0.10 | N/A | 0.39 | 0.661 | 0.16 | 0.47 | 0.90 |
| 15-8226-01 | 2.56 | 0.614 | 2.988 | 0.9840 MAX / 0.9835 MIN | 2.126 | M8 - 1.25 X 0.63 | M6 | 0.354 | 0.236 | 3.03 | 2.21 | 2.36 | 1.61 | 2.68 | 0.12 | 0.02 | 0.43 | 0.866 | 0.21 | 0.55 | 1.28 |
| 15-8229-01 | 2.56 | 0.614 | 3.264 | 0.9840 MAX / 0.9835 MIN | 2.126 | M8 - 1.25 X 0.63 | M6 | 0.354 | 0.236 | 3.03 | 2.21 | 2.36 | 1.61 | 2.68 | 0.12 | 0.02 | 0.43 | 0.866 | 0.21 | 0.55 | 1.28 |
| 15-8231-01 | 2.56 | 0.614 | 3.539 | 0.9840 MAX / 0.9835 MIN | 2.126 | M8 - 1.25 X 0.63 | M6 | 0.354 | 0.236 | 3.03 | 2.21 | 2.36 | 1.61 | 2.68 | 0.12 | 0.02 | 0.43 | 0.866 | 0.21 | 0.55 | 1.28 |
| 15-8234-01 | 3.35 | 0.752 | 3.854 | 1.2595 MAX / 1.2589 MIN | 2.638 | M10 - 1.5 X 0.79 | M8 | 0.394 | 0.236 | 3.58 | 2.52 | 2.91 | 1.85 | 3.15 | 0.14 | 0.10 | 0.51 | 1.063 | 0.27 | 0.71 | 1.67 |
| 15-8237-01 | 3.35 | 0.752 | 4.287 | 1.2595 MAX / 1.2589 MIN | 2.638 | M10 - 1.5 X 0.79 | M8 | 0.394 | 0.236 | 3.58 | 2.52 | 2.91 | 1.85 | 3.15 | 0.14 | 0.10 | 0.51 | 1.063 | 0.27 | 0.71 | 1.67 |
| 15-8241-01 | 3.35 | 0.752 | 4.681 | 1.2595 MAX / 1.2589 MIN | 2.638 | M10 - 1.5 X 0.79 | M8 | 0.394 | 0.236 | 3.58 | 2.52 | 2.91 | 1.85 | 3.15 | 0.14 | 0.10 | 0.51 | 1.063 | 0.27 | 0.71 | 1.67 |
| Model No. | A | B | C | D | E | F | G | H | J | K |
|---|---|---|---|---|---|---|---|---|---|---|
| 15-8219-01 | 0.8071 | 0.6299 | 0.0007 | 0.315 | 0.0520 | 0.2362 | 0.1181 | 0.3031 | 0.0433 | 0.6614 |
| 15-8221-01 | 0.8071 | 0.6299 | 0.0007 | 0.315 | 0.0520 | 0.2362 | 0.1181 | 0.3031 | 0.0433 | 0.6614 |
| 15-8224-01 | 0.8071 | 0.6299 | 0.0007 | 0.315 | 0.0520 | 0.2362 | 0.1181 | 0.3031 | 0.0433 | 0.6614 |
| 15-8226-01 | 1.1811 | 0.9843 | 0.0008 | 0.5512 | 0.0591 | 0.2362 | 0.1575 | 0.3858 | 0.0433 | 0.8661 |
| 15-8229-01 | 1.1811 | 0.9843 | 0.0008 | 0.5512 | 0.0591 | 0.2362 | 0.1575 | 0.3858 | 0.0433 | 0.8661 |
| 15-8231-01 | 1.1811 | 0.9843 | 0.0008 | 0.5512 | 0.0591 | 0.2362 | 0.1575 | 0.3858 | 0.0433 | 0.8661 |
| 15-8234-01 | 1.4409 | 1.2598 | 0.0010 | 0.6299 | 0.0520 | 0.2362 | 0.1969 | 0.4252 | 0.0433 | 1.063 |
| 15-8237-01 | 1.4409 | 1.2598 | 0.0010 | 0.6299 | 0.0520 | 0.2362 | 0.1969 | 0.4252 | 0.0433 | 1.063 |
| 15-8241-01 | 1.4409 | 1.2598 | 0.0010 | 0.6299 | 0.0520 | 0.2362 | 0.1969 | 0.4252 | 0.0433 | 1.063 |
